N67ENTY22.00

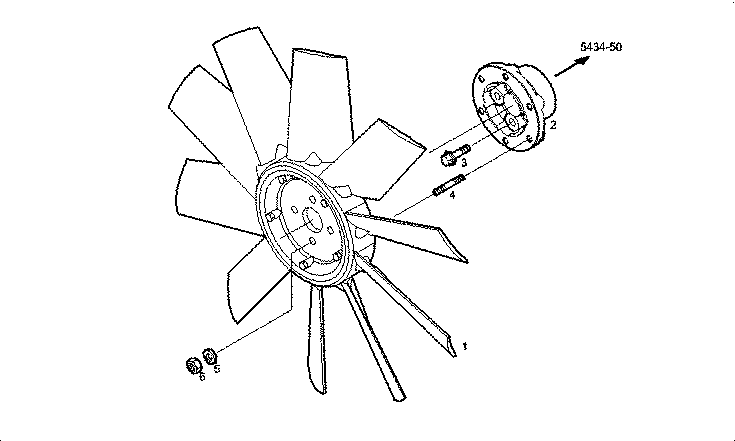

126802 FAN ASSEMBLY - OPTION: A08010508 PUSHER FAN 600mm H=60
Item | Part number | Description |
---|---|---|
1 | 8042848 | BLOWER |
2 | 8031725 | SPACING BAR |
3 | 16592724 | HEXAGON BOLT M10X65 MM |
4 | 16731324 | STUD M10X30 MM |
5 | 17095014 | WASHER Ø10X18 MM |
6 | 17038131 | HEXAGON NUT M10 |
