N67ENTY23.00

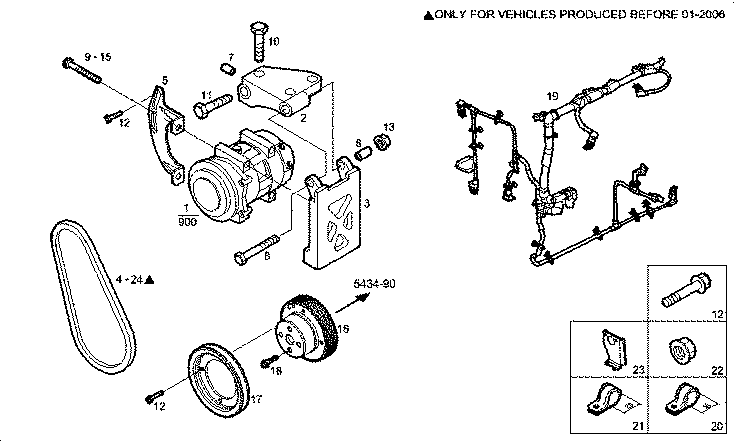

127035 COMPRES. AIR CONDIT. - OPTION: A81000509 24V
Item | Part number | Description |
---|---|---|
1 | 500388059 | AIR COND.COMPRESS. |
2 | 500387902 | SUPPORT |
3 | 500387643 | SUPPORT |
4 | 500385852 | ALTERNATOR BELT |
5 | 500387903 | TENSIONER |
6 | 98433179 | SPACING BAR |
7 | 99435557 | DOWEL PIN Ø8,5 MM |
8 | 16599724 | HEXAGON BOLT M12X130 MM |
9 | 16598425 | HEXAGON BOLT M8X110 MM |
10 | 4899144 | HEXAGON BOLT M10X1,5X50 MM |
11 | 4899147 | HEXAGON BOLT |
12 | 16673635 | HEXAGON BOLT M8X1.25X20 |
13 | 17044921 | HEXAGON NUT M12 |
15 | 16598325 | HEXAGON BOLT M8X100 MM |
16 | 504083374 | PULLEY |
17 | 504083372 | COMPRESSOR PULLEY |
18 | 16675735 | HEXAGON BOLT M10X25 MM |
19 | 504122747 | WIRE/CABLE |
20 | 17315192 | FASTENING BRACKET ENGINE |
21 | 17315390 | FASTENING BRACKET |
22 | 17044625 | HEXAGON NUT M6 |
23 | 504076667 | RETAINER |
24 | 500038177 | GENERATOR BELT VL |
