N67ENTY23.00

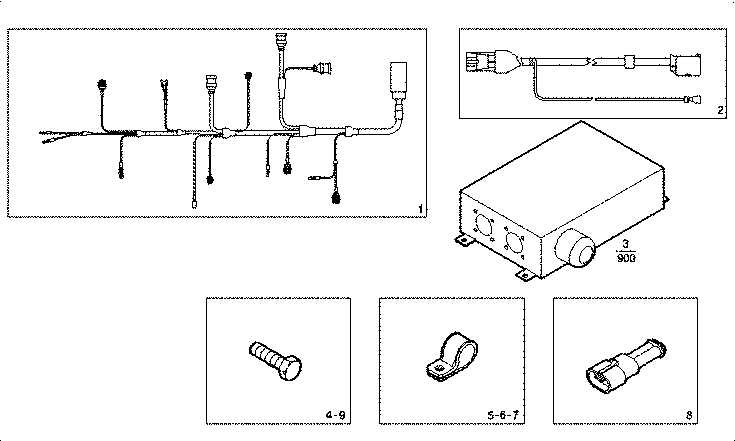

131072 ENGINE CABLE - OPTION: A38100509 12V
Item | Part number | Description |
---|---|---|
1 | 8044375 | ENGINE HARNESS |
2 | 8037862 | EXTENSION for alternator |
3 | 8052674 | SWITCHGEAR |
4 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
5 | 10450090 | PIPE CLIP Ø8 MM |
6 | 4936279 | CLIP |
7 | 4936278 | CLIP |
8 | 8045095 | CONNECTION [FROM 12/09/08] |
9 | 18139424 | HEXAGON BOLT M10X20 MM |
