N67ENTY23.00

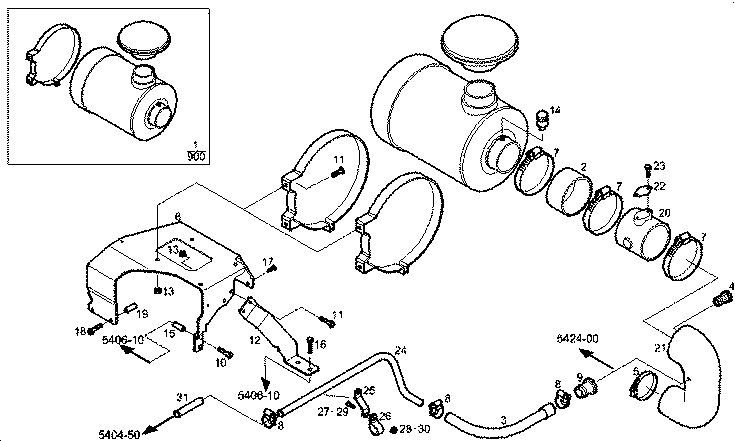

157534 AIR CLEANER - OPTION: A21210500

Iveco/FPT AIR CLEANER - OPTION: A21210500

Item Part number Description
1 8034193 AIR CLEANER VIRGIS-FL 12
2 5801567337 RUBBER SLEEVE
3 8036392 RUBBER SLEEVE [UP TO 06/10/08]
4 8015315 PIPE SOCKET
5 17765494 CLIP dia. = 100/120
6 5801584491 FILTER SUPPORT
7 17765794 CLIP Ø130/150 MM
8 18088392 CLIP Ø16/25 MM
9 8015133 PIPE SOCKET
10 16586725 HEXAGON BOLT M8X1.25X40 MM
11 18139424 HEXAGON BOLT M10X20 MM
12 5801506180 RETAINER
13 17044825 HEXAGON NUT M10
14 8027294 CHOCKED FILTER INDIC. MECHANICAL
15 17816514 SPACING BAR Ø8,5X18 MM SP=25 MM
16 16677735 HEXAGON BOLT M12X25 MM
17 16587125 HEXAGON BOLT M10X25 MM
18 16592925 HEXAGON BOLT M10X80 MM
19 4895336 SPACING BAR
20 5801541435 CONNECTOR SLEEVE
21 5801567342 FILTER HOSE
22 5801583542 FLANGE
23 16978124 HEXAGON BOLT
24 5801507427 BREATHER PIPE
25 5801388726 FASTENING BRACKET
26 17315390 FASTENING BRACKET
27 16585870 HEXAGON BOLT M6X20
28 17044625 HEXAGON NUT M6
29 16673735 HEXAGON BOLT M8X25 MM
30 17044725 HEXAGON NUT M8
31 8034455 RUBBER SLEEVE
