N67MNAE00.00A001

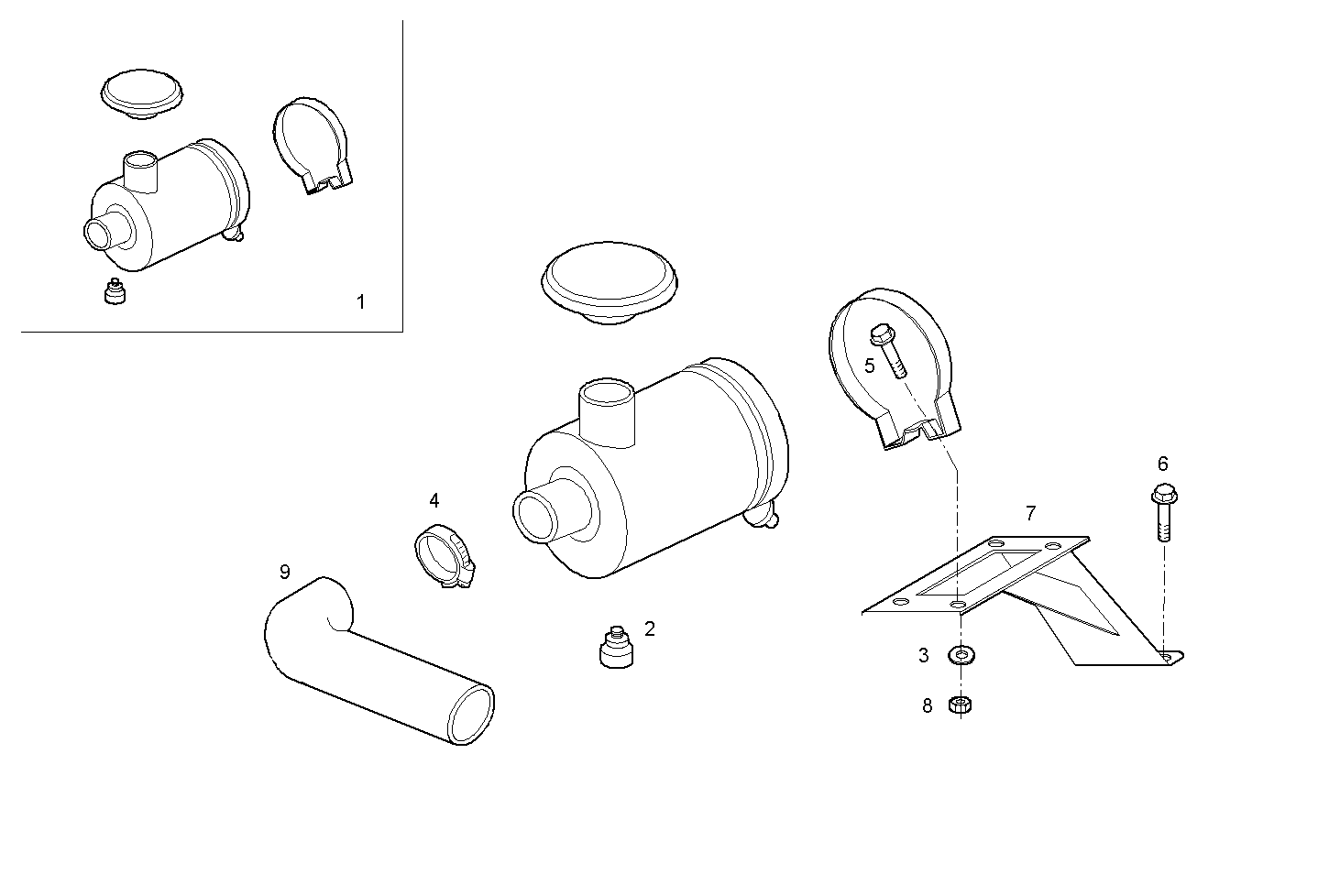

2210.052 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8032713 | AIR CLEANER ASSY |
| 2 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 3 | 17089674 | SPRING WASHER Ø8X16 MM SP=2,2 MM |
| 4 | 17765391 | CLIP Ø90/110 MM |
| 5 | 16605534 | HEXAGON BOLT M8X20 MM (10.9) |
| 6 | 16677735 | HEXAGON BOLT M12X25 MM |
| 7 | 8033553 | FILTER SUPPORT |
| 8 | 17037925 | HEXAGON NUT M8X1,25 |
| 9 | 8038462 | FILTER HOSE |
