N67MNAE00.00A001

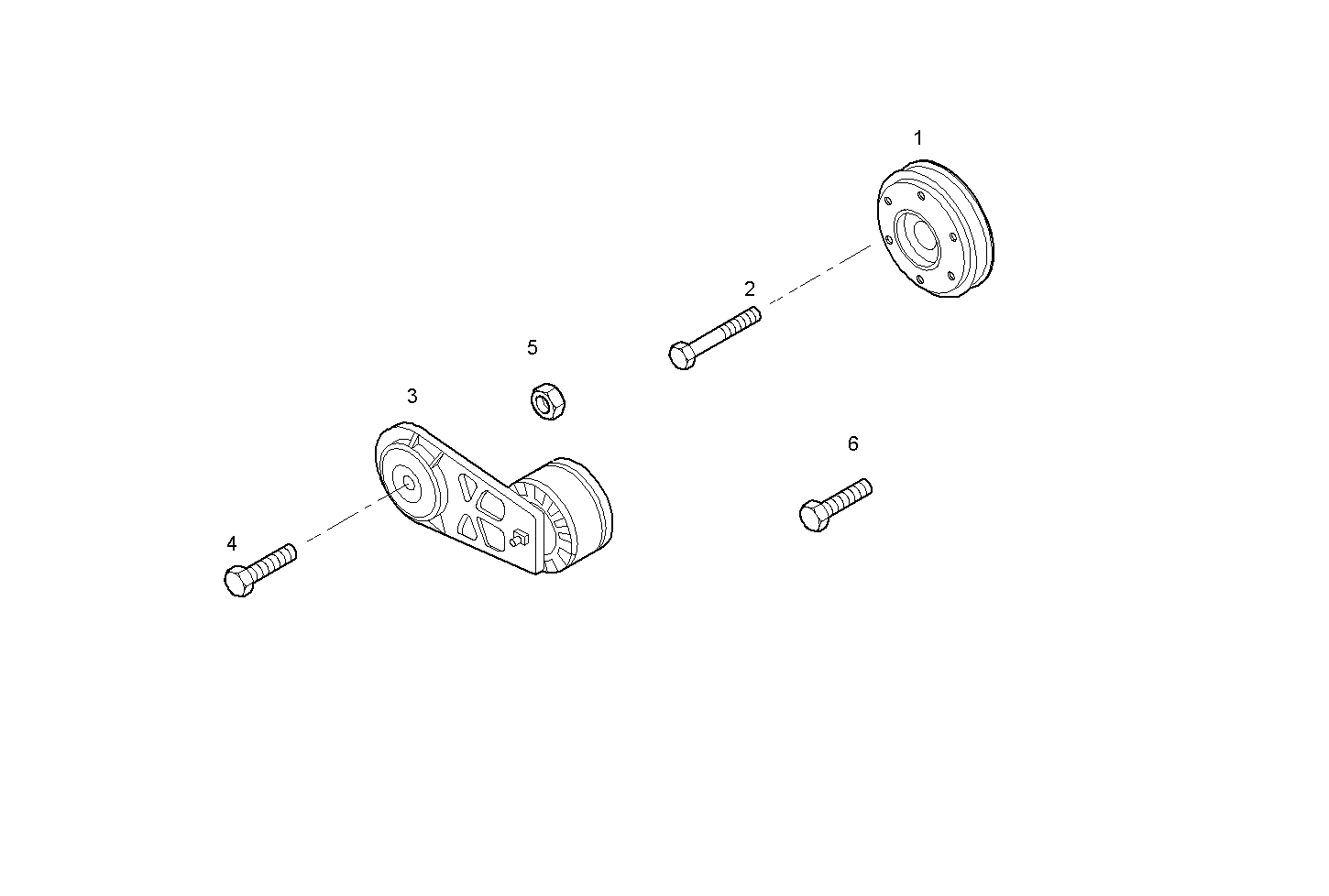

3240.158 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 8033434 | PULLEY |
| 2 | 16288734 | HEXAGON BOLT M10X1,25X40 MM |
| 3 | 8033581 | BELT TENSIONER |
| 4 | 16598924 | HEXAGON BOLT M10X110 |
| 5 | 16984331 | NUT M10 |
| 6 | 16587125 | HEXAGON BOLT M10X25 MM |
