N67MNAM12.30

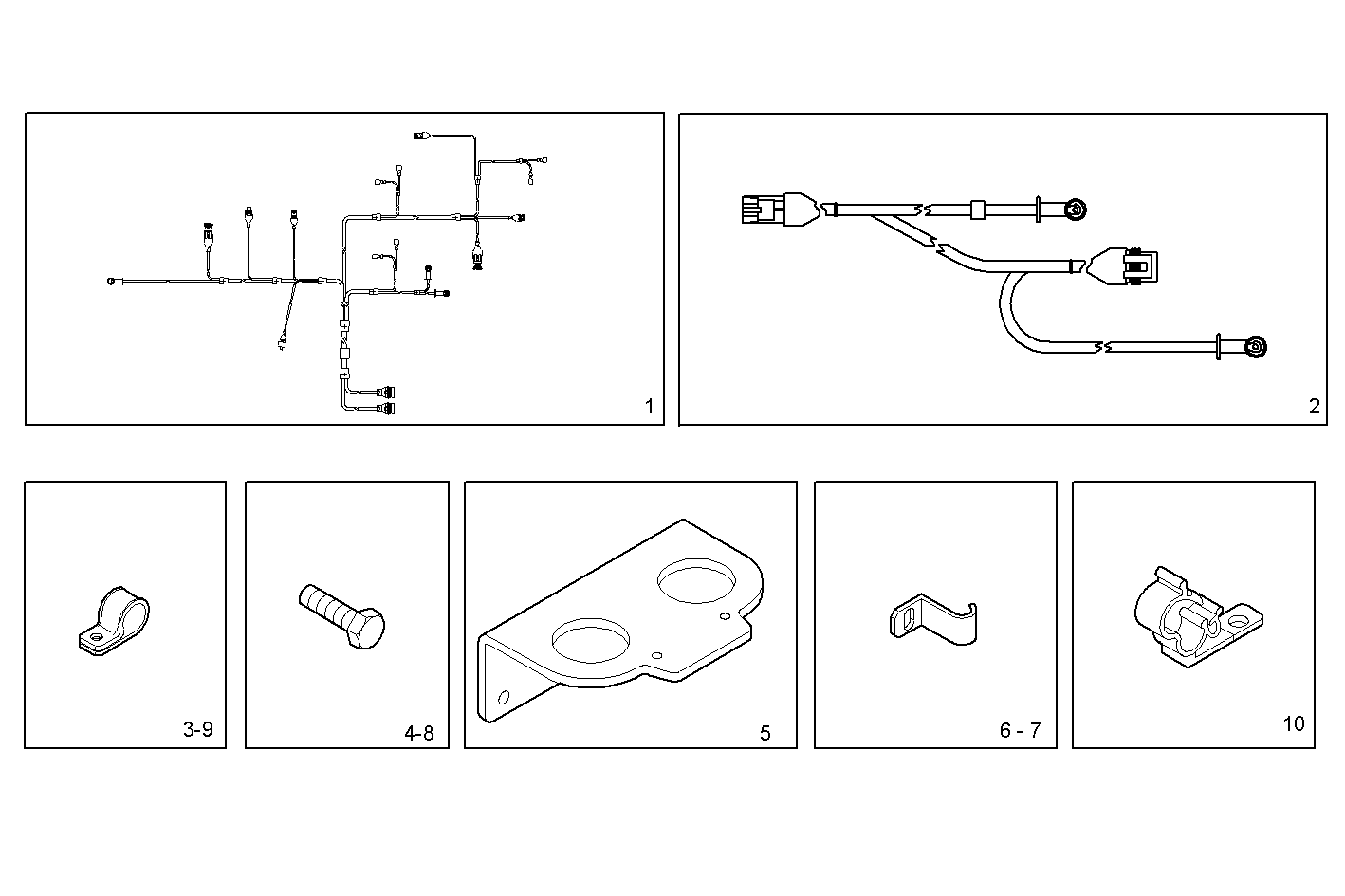

1730.073 ENGINE CABLE

Iveco/FPT ENGINE CABLE

Item Part number Description
1 8036996 ENGINE HARNESS ENGINE
2 8039724 WIRE/CABLE for electrovalve & ksb
3 10450590 PIPE CLIP Ø18 MM
4 16605424 SCREW M8X16 MM (8.8)
5 8039482 PLATE
6 17316699 PIPE CLIP Ø14 MM
7 17316690 FASTENING BRACKET Ø20,5 MM
8 16677735 HEXAGON BOLT M12X25 MM
9 10450090 PIPE CLIP Ø8 MM
10 99453771 RETAINER
