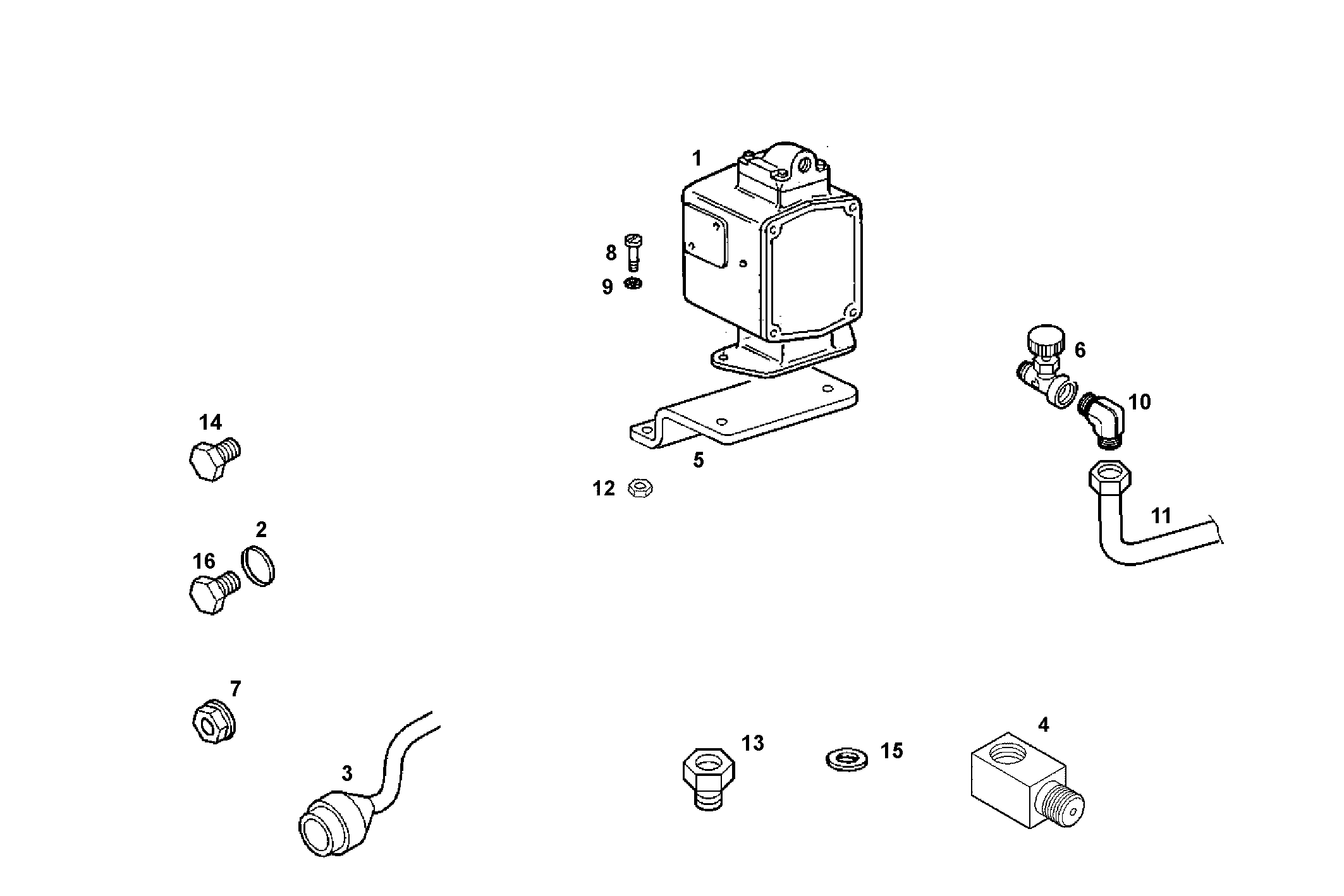

A16030503 SENDERS - R.I.NA
| Item | Part number | Description |
|---|---|---|
| 1 | 8038419 | PRESSURE SWITCH |
| 2 | 16507314 | WASHER |
| 3 | 8034358 | EXTENSION |
| 4 | 8038803 | PIPE SOCKET |
| 5 | 8038524 | RETAINER |
| 6 | 8033959 | RETAINER COCK |
| 7 | 16506615 | UNION NUT |
| 8 | 16603524 | SCREW M6X12 MM (8.8) |
| 9 | 17088474 | WASHER Ø6X12 MM |
| 10 | 8033819 | ELBOW COUPLING |
| 11 | 8038522 | OIL LINE |
| 12 | 17044621 | HEXAGON NUT M6 |
| 13 | 8032383 | PIPE SOCKET M14X1,5 |
| 14 | 10300611 | LOCK PLUG M14X1,5 |
| 15 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 16 | 16588025 | HEXAGON BOLT M12X30 MM |
