N67MNAM15.01

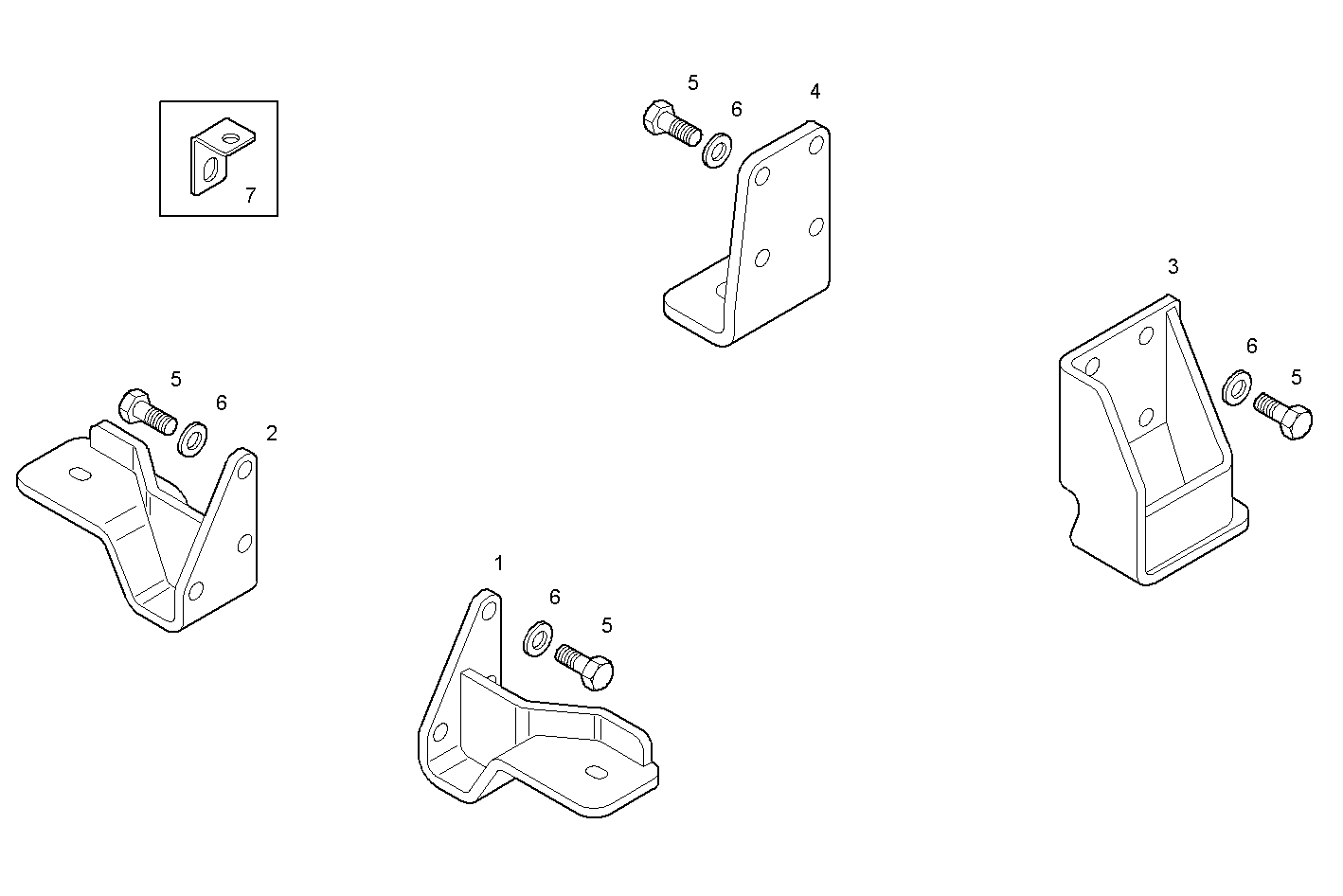

A04010504 RIGID MOUNTING

Iveco/FPT RIGID MOUNTING

Item Part number Description
1 8038993 FRONT ENG. MOUNT RIGHT
2 8038990 FRONT ENG. MOUNT LEFT
3 8038944 REAR ENG. MOUNT RIGHT
4 8038947 REAR ENG. MOUNT LEFT
5 16609924 HEXAGON BOLT M12X30 MM (8.8)
6 17091074 WASHER Ø12X24X2,8 MM
7 8039417 RETAINER
