N67MNAM15.30

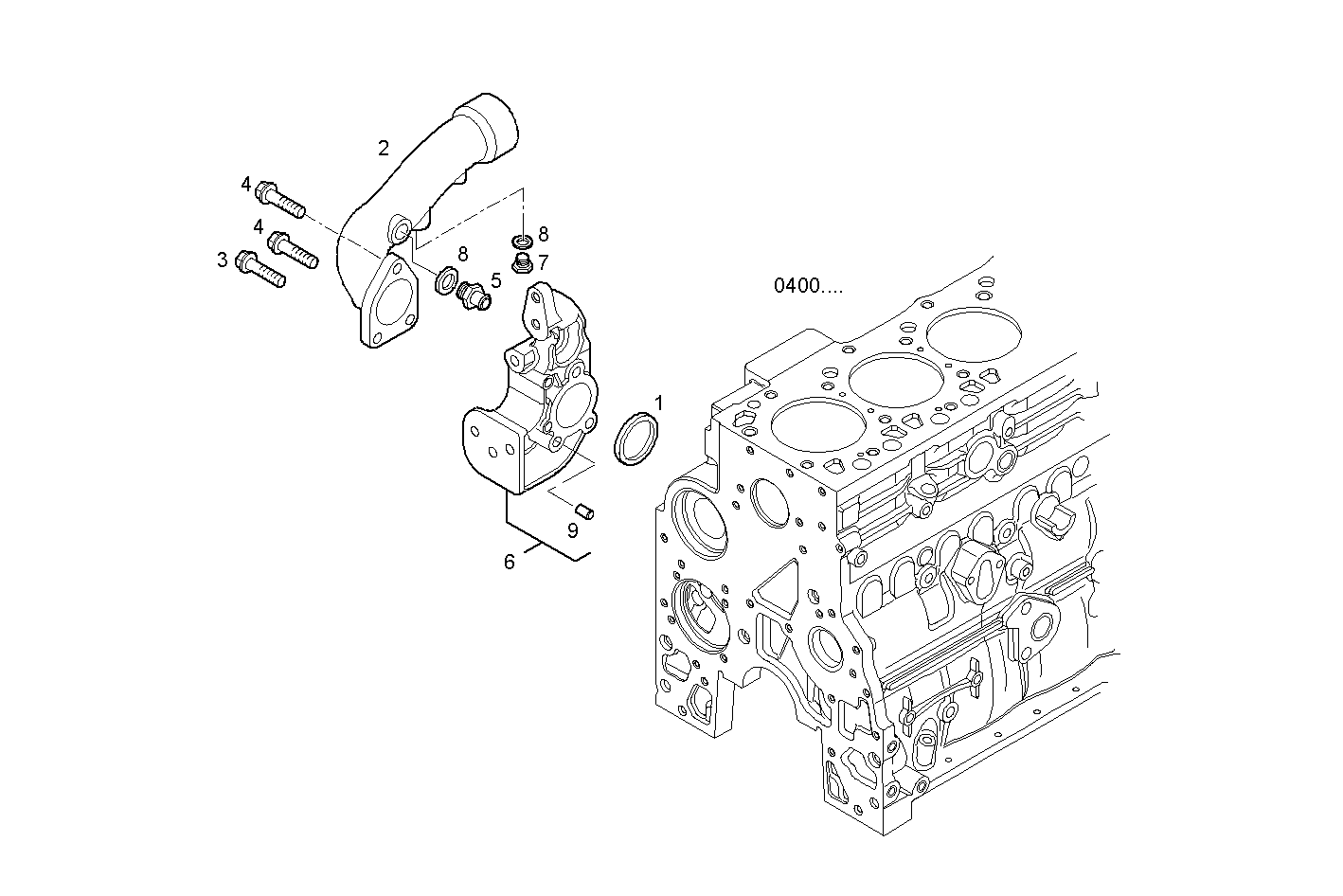

3210.310 WATER LINES
Item | Part number | Description |
---|---|---|
1 | 504062710 | WASHER |
2 | 8042837 | WATER PIPE |
3 | 16592925 | HEXAGON BOLT M10X80 MM |
4 | 16599224 | HEXAGON BOLT M10X140 MM |
5 | 8024797 | PIPE SOCKET M30X1,5 |
6 | 500387647 | GENERATOR SUPPORT ASSY |
7 | 16993011 | THREADED PLUG M30X1,5 |
8 | 99434480 | SEAL GASKET Ø30X40 MM |
9 | 4895576 | DOWEL PIN |
