N67MNAM15.30

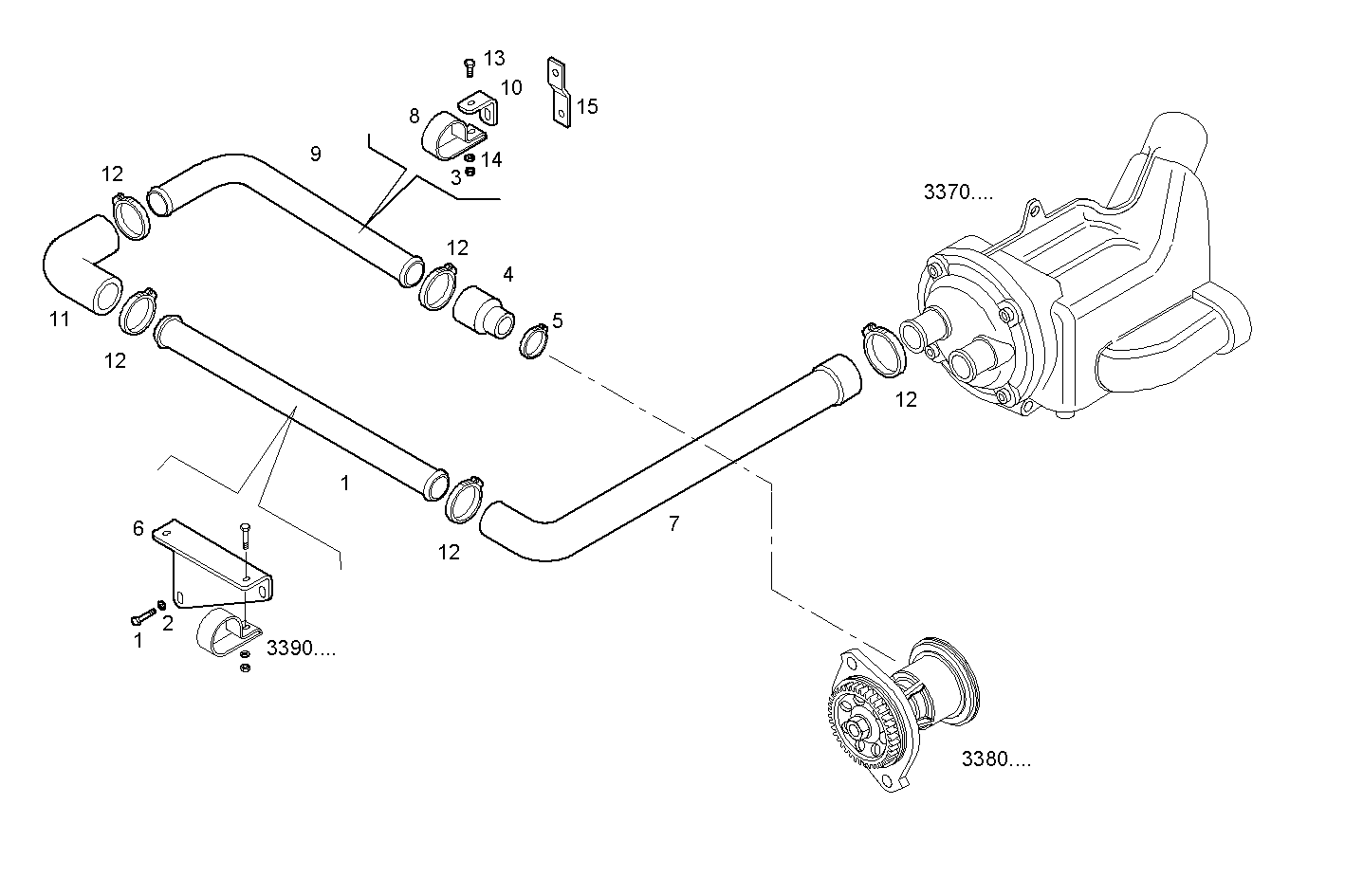

3390.072 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 16587125 | HEXAGON BOLT M10X25 MM |
| 2 | 4932695 | WASHER |
| 3 | 17038131 | HEXAGON NUT M10 |
| 4 | 8043534 | RUBBER SLEEVE |
| 5 | 17764893 | CLIP Ø40/60 MM |
| 6 | 8039259 | RETAINER |
| 7 | 8043322 | RUBBER SLEEVE |
| 8 | 8034457 | CLIP |
| 9 | 8041607 | SEA WATER PIPE |
| 10 | 8039381 | FASTENING BRACKET [UP TO 12/10/05] |
| 11 | 8016576 | RUBBER SLEEVE |
| 12 | 17764793 | CLIP Ø32/50 MM |
| 14 | 17090174 | SPRING WASHER Ø10X20 MM |
| 15 | 8043395 | FASTENING BRACKET [FROM 12/10/05] |
