N67MNAM15.31

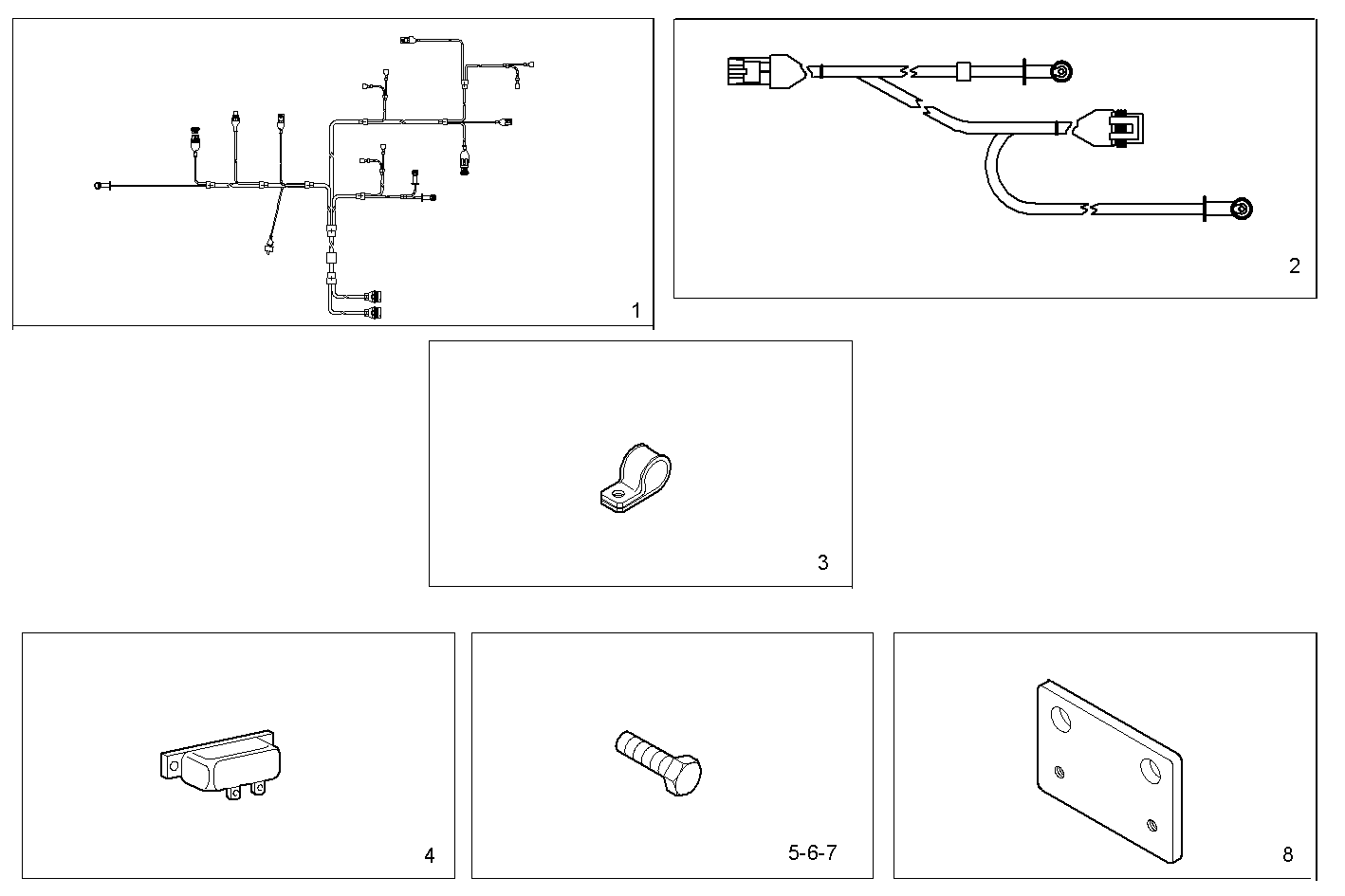

1730.051 ENGINE CABLE
Item | Part number | Description |
---|---|---|
1 | 8043510 | ENGINE HARNESS |
2 | 8039724 | WIRE/CABLE for electrovalve & ksb |
3 | 17316690 | FASTENING BRACKET Ø20,5 MM |
4 | 8108574 | RELAY STARTER |
5 | 16588025 | HEXAGON BOLT M12X30 MM |
6 | 16596924 | HEXAGON BOLT M6X10 MM |
7 | 16605424 | SCREW M8X16 MM (8.8) |
8 | 8044136 | RETAINER |
