N67MNAM15.31

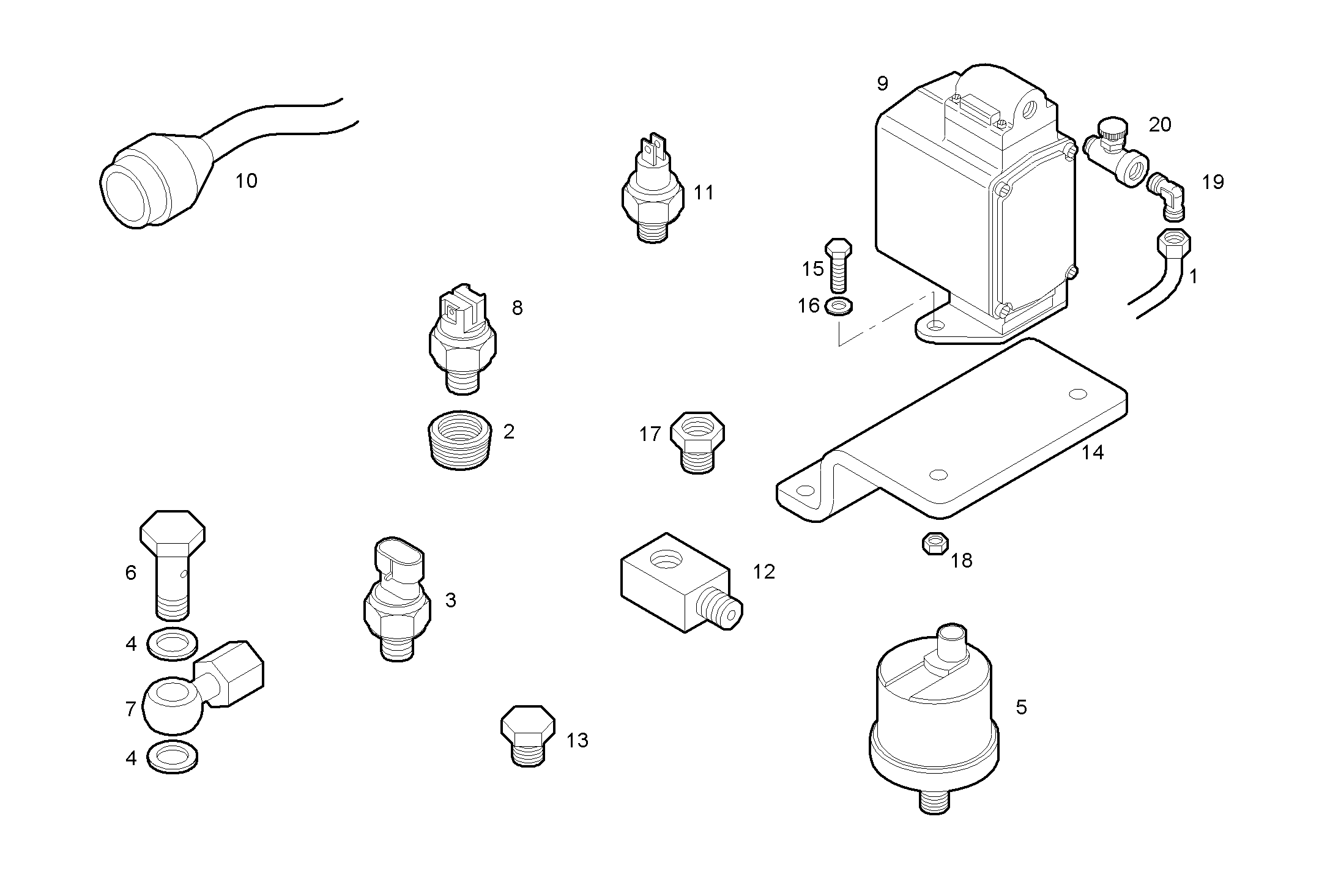

A16030509 SENDERS - R.I.NA
| Item |
Part number |
Description |
|
1 |
8038522 |
OIL LINE |
|
2 |
8033022 |
PIPE SOCKET |
|
3 |
8019334 |
TRANSMITTER IATA |
|
4 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
5 |
8100417 |
TRANSMITTER TPO |
|
6 |
61608319 |
SCREW CONNECTOR |
|
7 |
8040045 |
PIPE SOCKET |
|
8 |
8114030 |
TRANSMITTER IBPO |
|
9 |
8038419 |
PRESSURE SWITCH |
|
10 |
8034358 |
EXTENSION |
|
11 |
8100418 |
TRANSMITTER TTA |
|
12 |
8032383 |
PIPE SOCKET M14X1,5 |
|
13 |
10300611 |
LOCK PLUG M14X1,5 |
|
14 |
8038524 |
RETAINER |
|
15 |
16603525 |
SCREW M6X12 MM |
|
16 |
17088474 |
WASHER Ø6X12 MM |
|
17 |
8038803 |
PIPE SOCKET |
|
18 |
17044625 |
HEXAGON NUT M6 |
|
19 |
8033819 |
ELBOW COUPLING |
|
20 |
8033959 |
RETAINER COCK |
