N67MNAM15.31

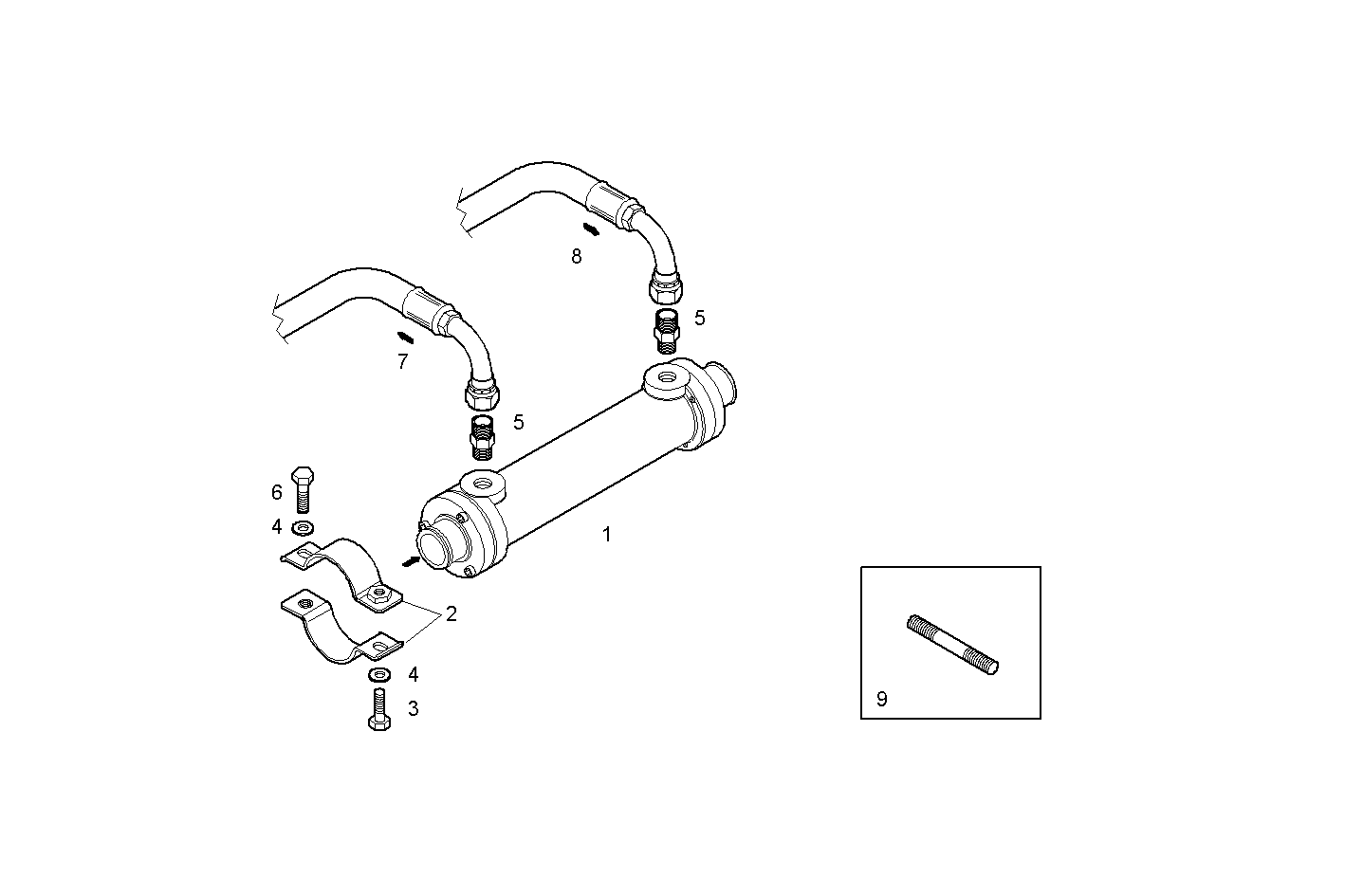

A51050503/01 MARINE GEAR - TM 170 ratio 2.06:1

Iveco/FPT MARINE GEAR

Item Part number Description
1 8016304 OIL/WATER HEAT EXCHANGER ASSY
2 8039731 CLIP
3 16605624 HEXAGON BOLT M8X25 MM (8.8)
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 8101073 PIPE SOCKET
6 16605734 HEXAGON BOLT M8X30 MM
7 4935779 HOSE
8 8105620 HOSE
9 17368024 STUD M10X25X30
