N67MNAU00.00

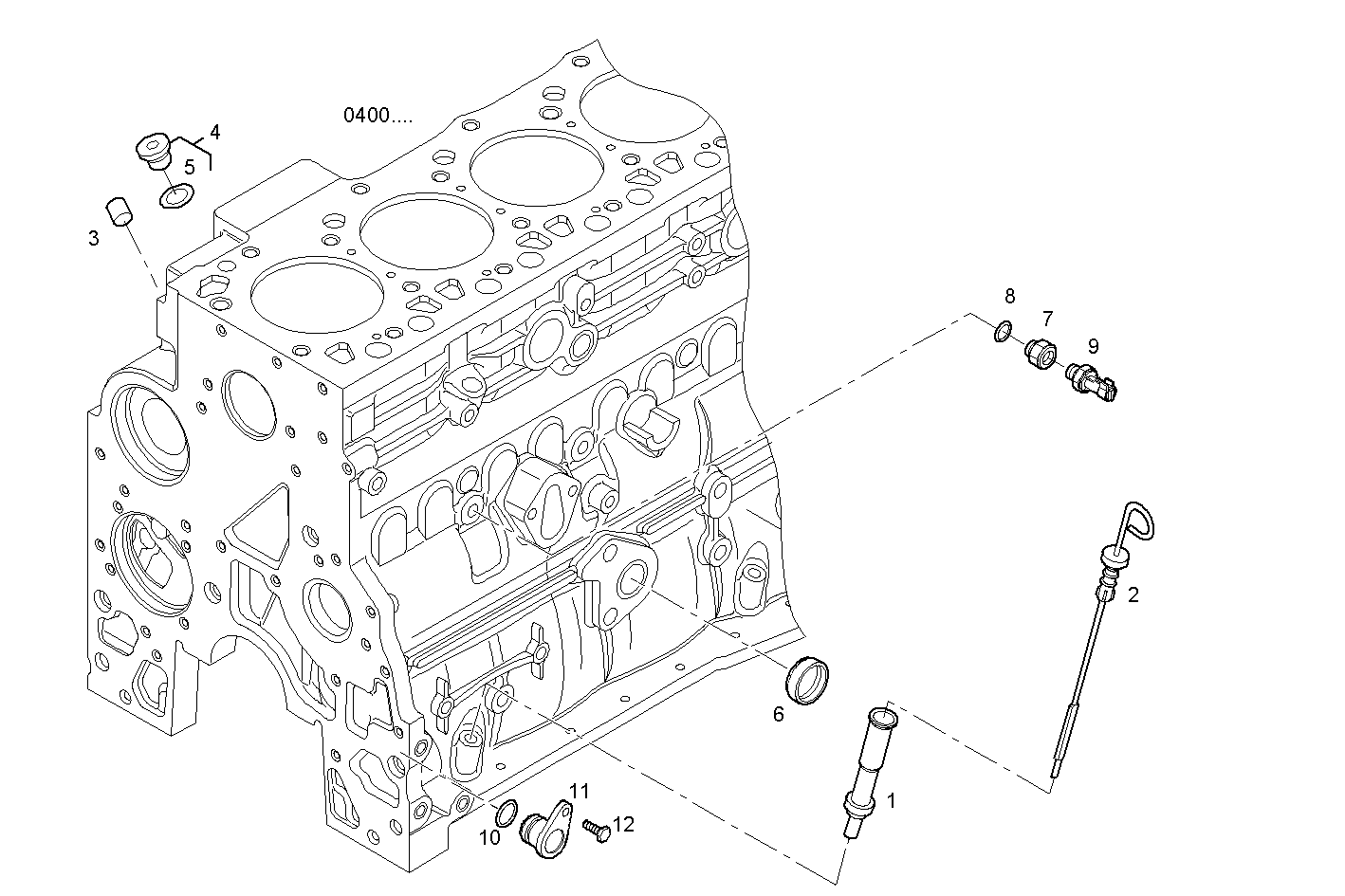

2710.152 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 8035064 | OIL LEVEL TUBE |
| 2 | 8034679 | OIL DIPSTICK |
| 3 | 4899036 | PLUG |
| 4 | 4897330 | PLUG ASSY M12X1,5 |
| 5 | 4895610 | O-RING |
| 6 | 4895037 | PLUG |
| 7 | 504036357 | THREADED UNION |
| 8 | 4899072 | O-RING |
| 9 | 504085003 | PRESSURE SWITCH |
| 10 | 17281881 | O-RING DIA 17,12 SP 2,62 |
| 11 | 504058975 | OIL FILLER PLUG |
| 12 | 16597224 | HEXAGON BOLT M6X18 MM |
