N67MNSM22.10

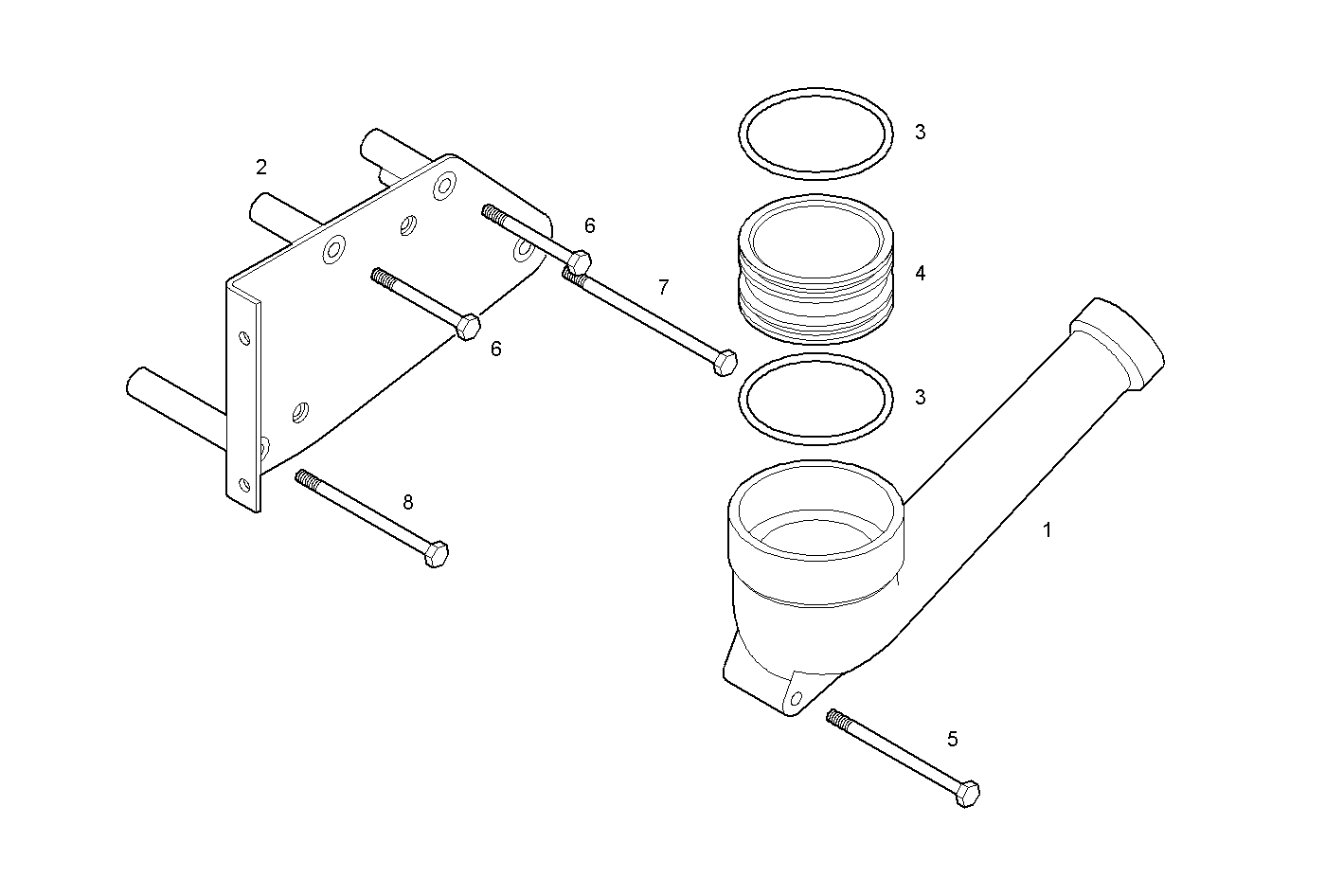

2420.229 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8041556 | SUCTION LINE |
| 2 | 8041502 | SUPPORT |
| 3 | 17297081 | O-RING Ø88,26X5,33 MM |
| 4 | 8031755 | WATER PIPE |
| 5 | 16598425 | HEXAGON BOLT M8X110 MM |
| 6 | 16592625 | HEXAGON BOLT M8X80 MM |
| 7 | 16598625 | HEXAGON BOLT M8X1,25X140 MM |
| 8 | 16598524 | SCREW M8X120MM |
