N67MNTD20.00A006

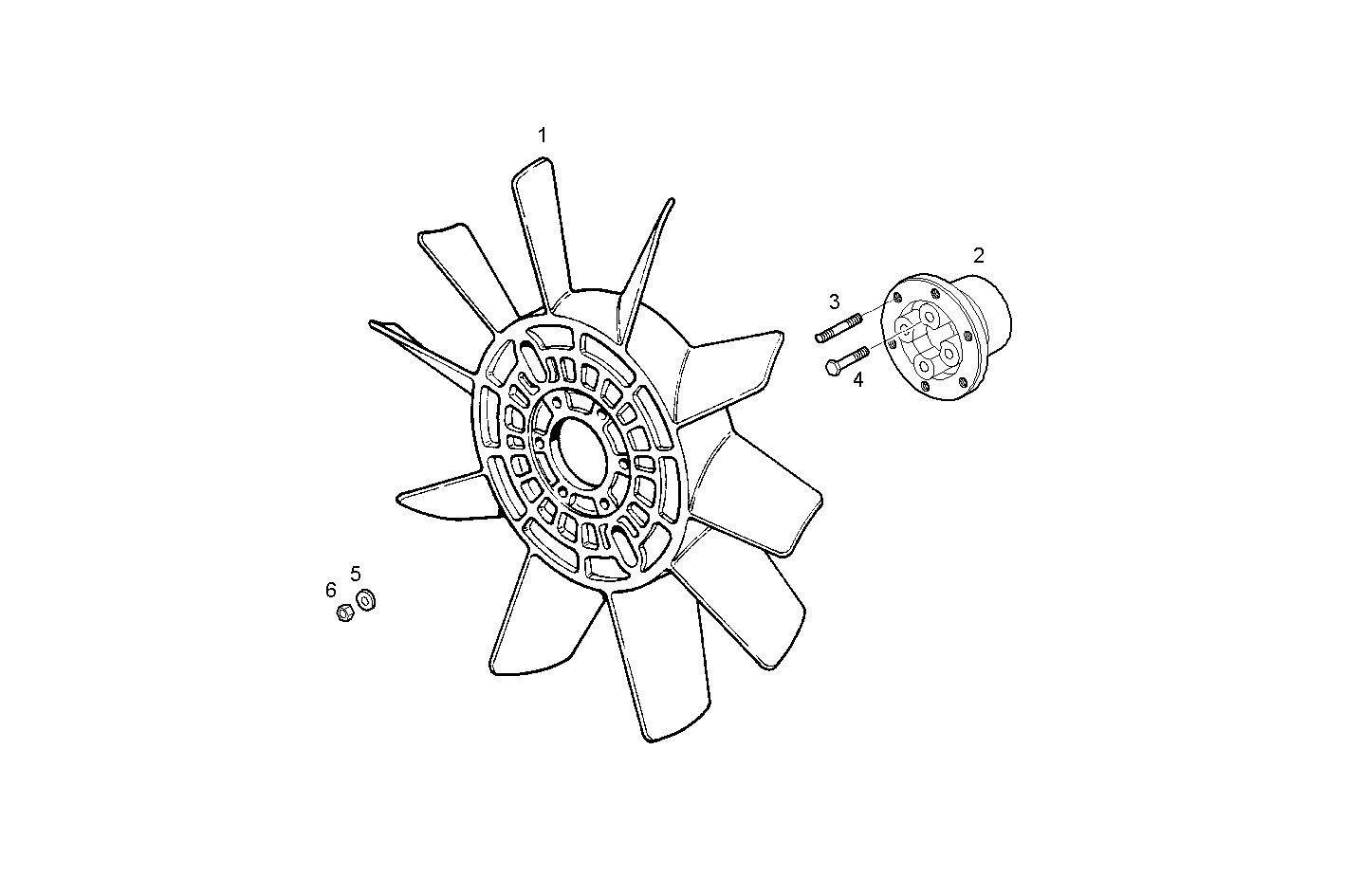

3470.033 FAN ASSEMBLY
| Item | Part number | Description |
|---|---|---|
| 1 | 8033779 | BLOWER |
| 2 | 8035360 | SPACING BAR |
| 3 | 16731324 | STUD M10X30 MM |
| 4 | 16608824 | HEXAGON BOLT M10X100 MM |
| 5 | 16665604 | WASHER Ø10X20 MM |
| 6 | 17038131 | HEXAGON NUT M10 |
