N67MNTD20.00A007

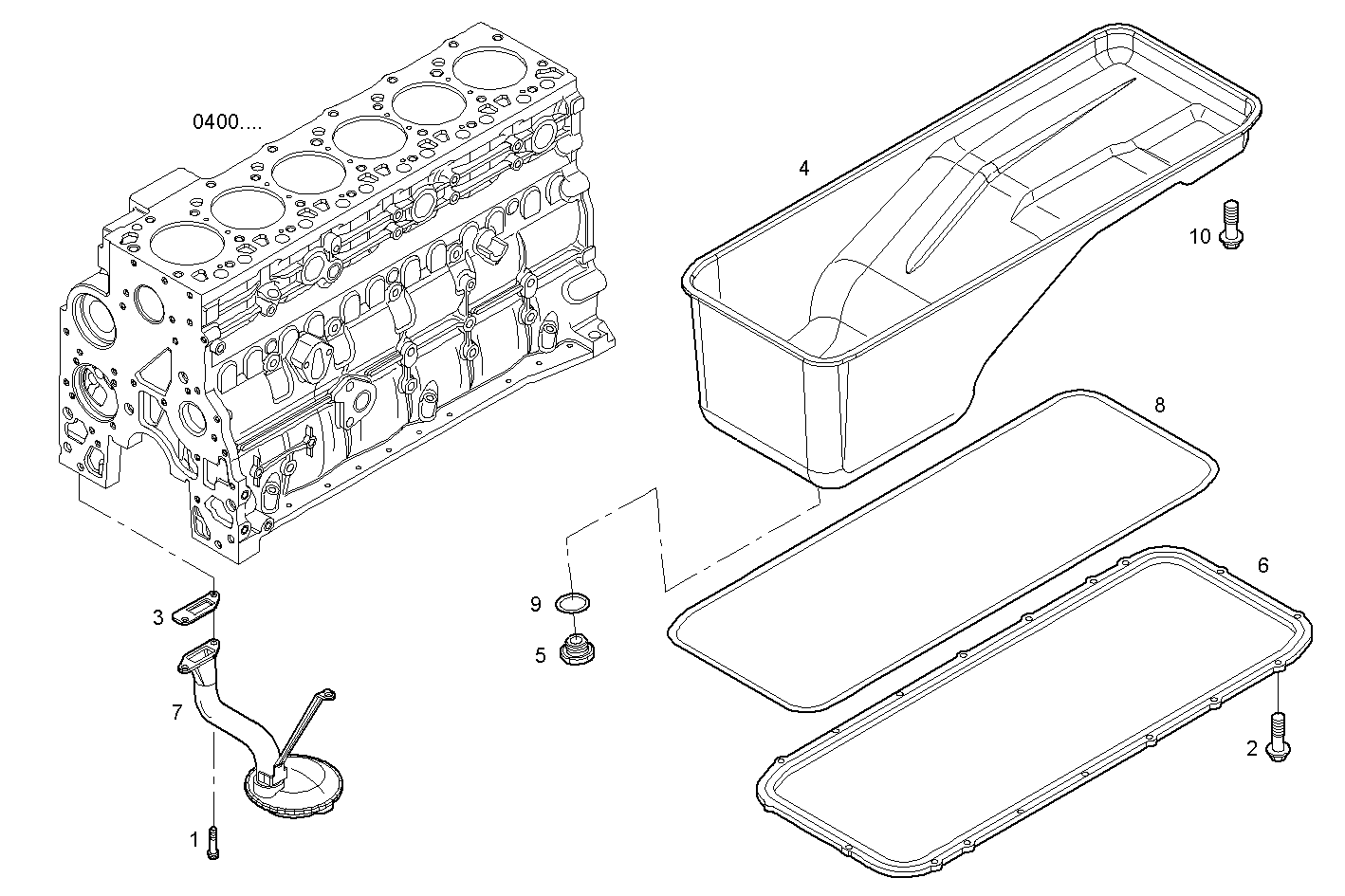

0420.170 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 16586325 | HEXAGON BOLT M8X20 MM |
2 | 4899091 | HEXAGON BOLT |
3 | 4898301 | FLAT ENGINE GASKET |
4 | 500388254 | OIL SUMP ASSY |
5 | 4894139 | THREADED PLUG M22X1,5 |
6 | 4897858 | SPACING BAR |
7 | 500388257 | SUCTION STRAINER |
8 | 4897861 | OIL SUMP GASKET |
9 | 4895584 | O-RING |
10 | 4899032 | HEXAGON BOLT M10X25 MM |
