N67MNTD20.00A007

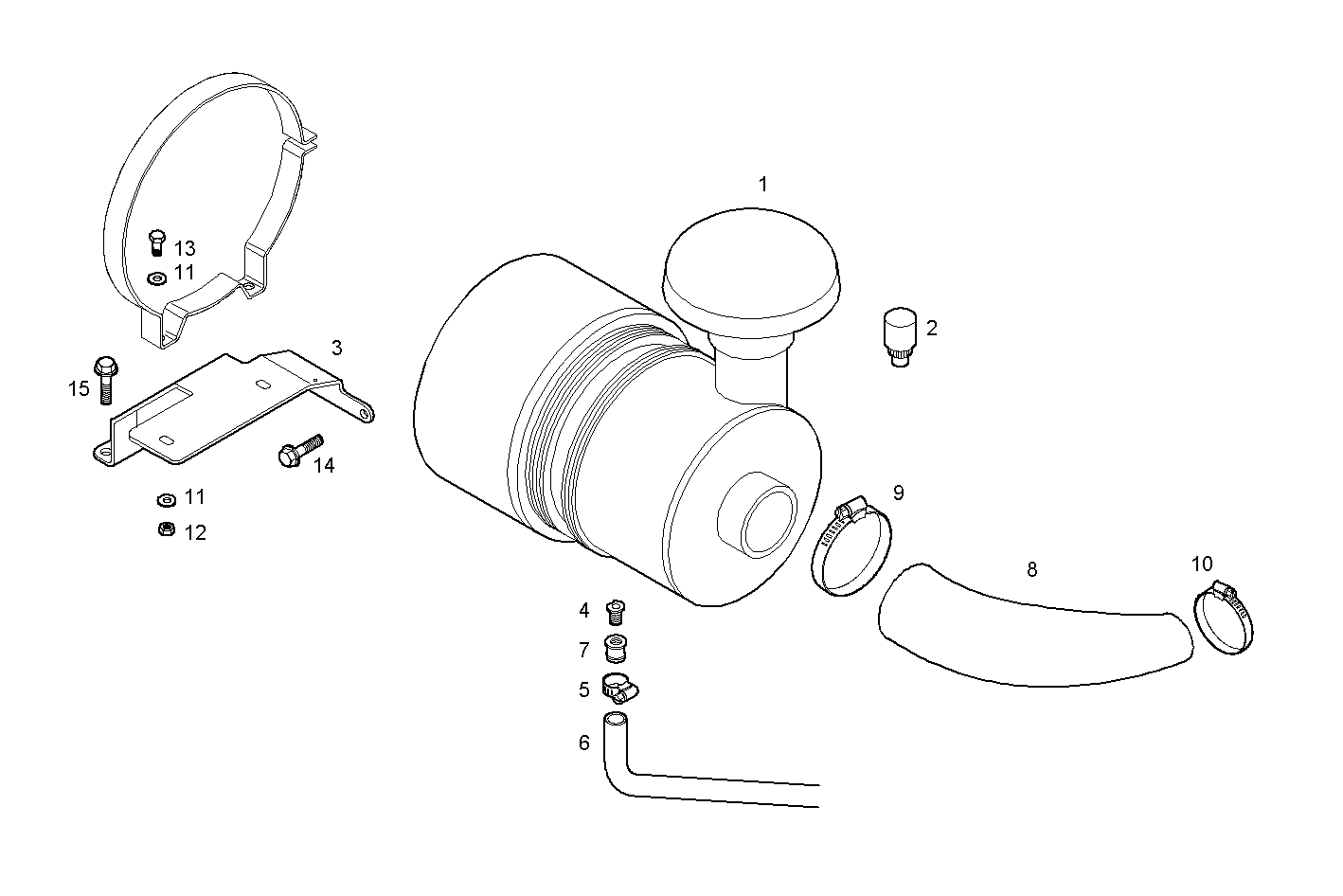

2210.002 AIR CLEANER [FROM 17-07-07] [FROM 17-07-07]
| Item | Part number | Description |
|---|---|---|
| 1 | 8041166 | AIR CLEANER ASSY |
| 2 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 3 | 8041315 | FILTER SUPPORT |
| 4 | 8018698 | PIPE SOCKET |
| 5 | 18088493 | CLIP |
| 6 | 8036392 | RUBBER SLEEVE [UP TO 06/10/08] |
| 7 | 8036882 | PIPE SOCKET |
| 8 | 8035217 | FILTER HOSE |
| 9 | 17765794 | CLIP Ø130/150 MM |
| 10 | 17765491 | CLIP Ø70/90 MM |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
| 12 | 17038131 | HEXAGON NUT M10 |
| 13 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 14 | 16593124 | HEXAGON BOLT M10X100 MM |
| 15 | 16599724 | HEXAGON BOLT M12X130 MM |
