N67MNTD20.00A007

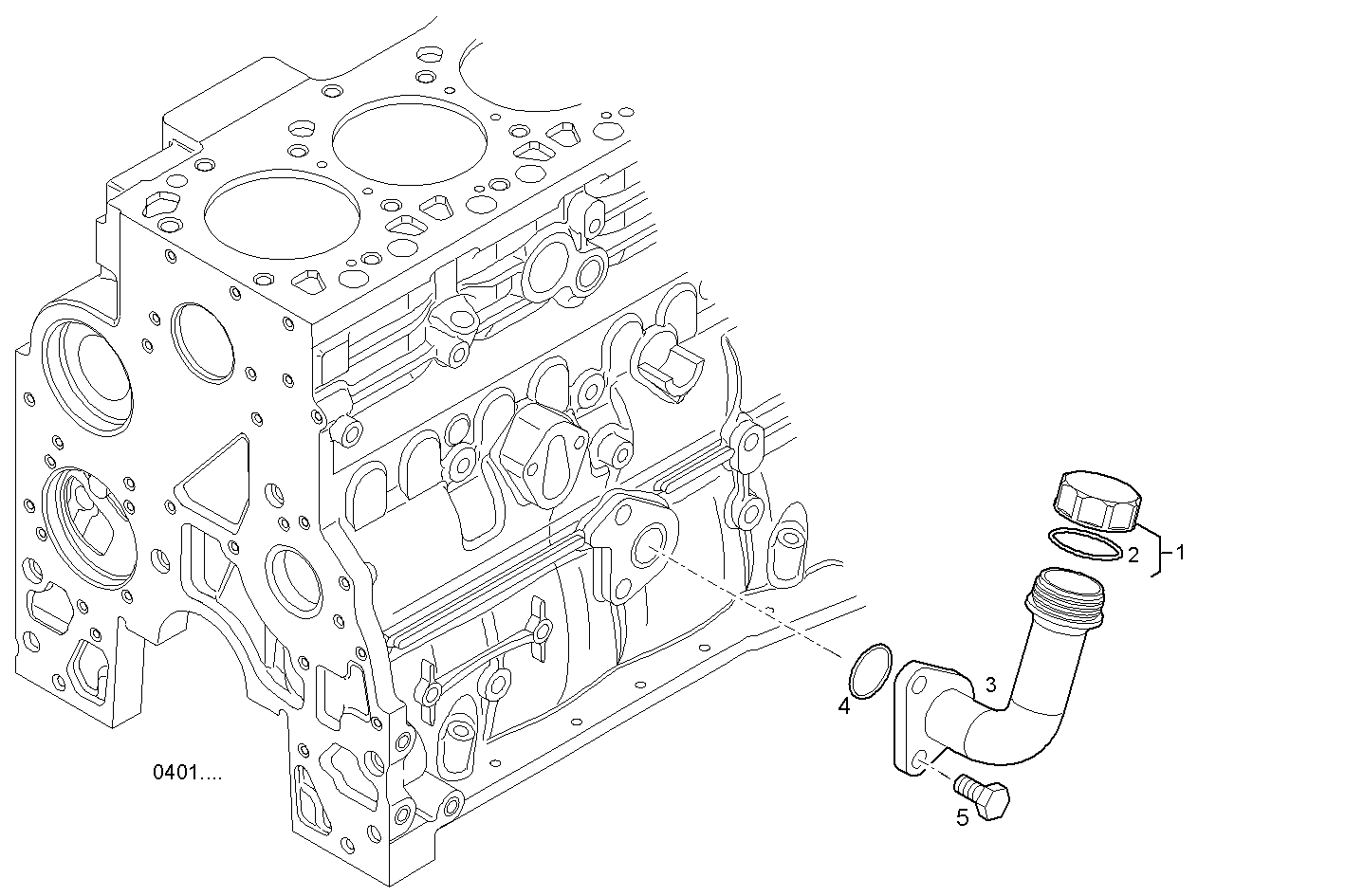

2712.011 OIL DIPSTICK PIPE [FROM 23/03/06] [FROM 23/03/06]

Iveco/FPT OIL DIPSTICK PIPE

Item Part number Description
1 500301568 OIL FILLER PLUG ASSY
2 17295480 O-RING 5,33x37,46
3 504087621 OIL FILLER PIPE
4 17283181 O-RING Ø37,77 MM SP=2,62 MM
5 16677735 HEXAGON BOLT M12X25 MM
