N67MNTD20.00A007

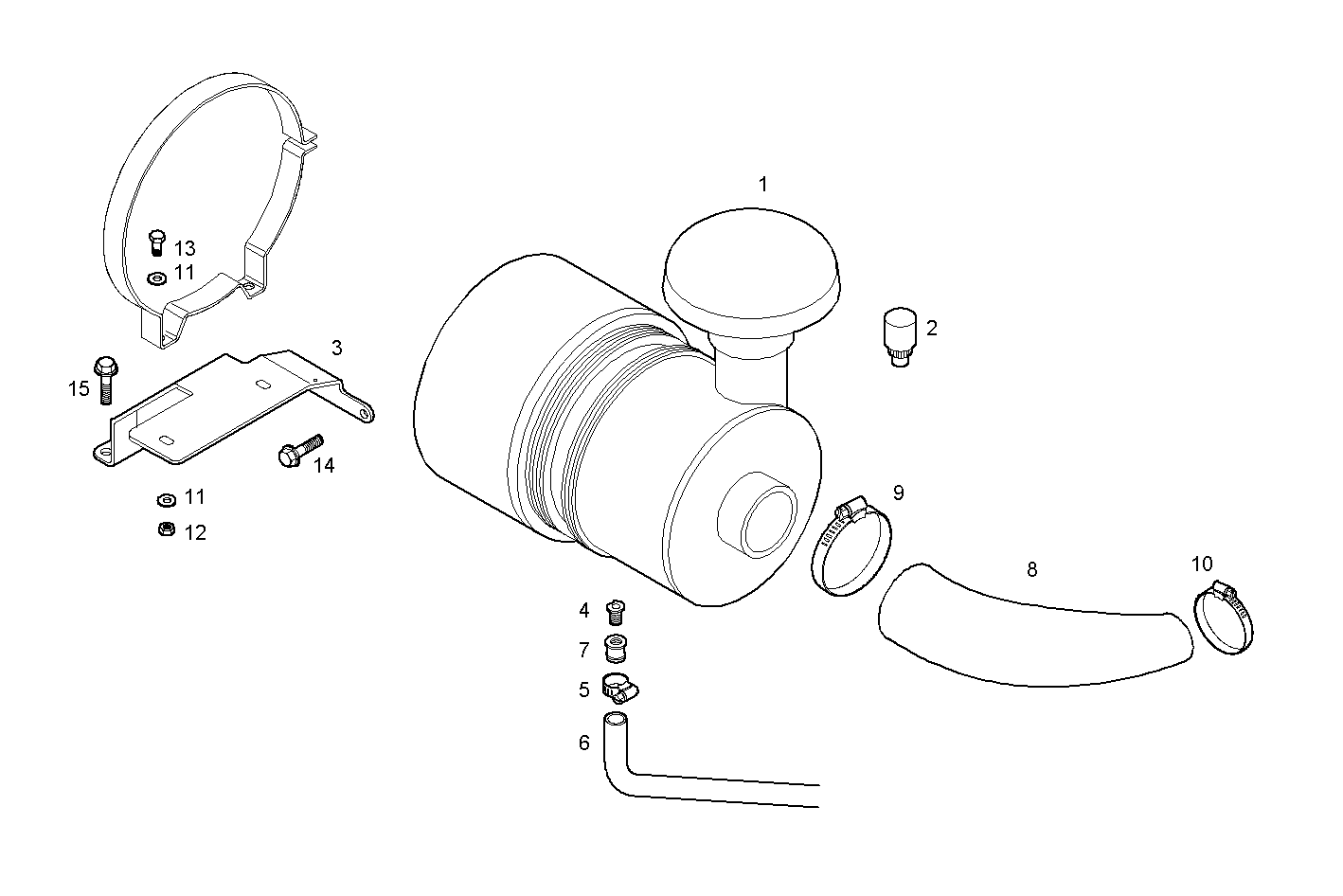

A21220502 AIR CLEANER

Iveco/FPT AIR CLEANER

Item Part number Description
1 8041166 AIR CLEANER ASSY
2 8027294 CHOCKED FILTER INDIC. MECHANICAL
3 8041315 FILTER SUPPORT
4 8018698 PIPE SOCKET
5 18088392 CLIP Ø16/25 MM
6 8035724 RUBBER SLEEVE [UP TO 18-12-06]
7 8036882 PIPE SOCKET
8 8035217 FILTER HOSE
8 8047608 FILTER HOSE [FROM 19-12-06]
9 17765694 CLIP
10 17765491 CLIP Ø70/90 MM
11 17090174 SPRING WASHER Ø10X20 MM
12 17038131 HEXAGON NUT M10
13 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
14 16593124 HEXAGON BOLT M10X100 MM
15 16599724 HEXAGON BOLT M12X130 MM
