N67MNTE21.00A002

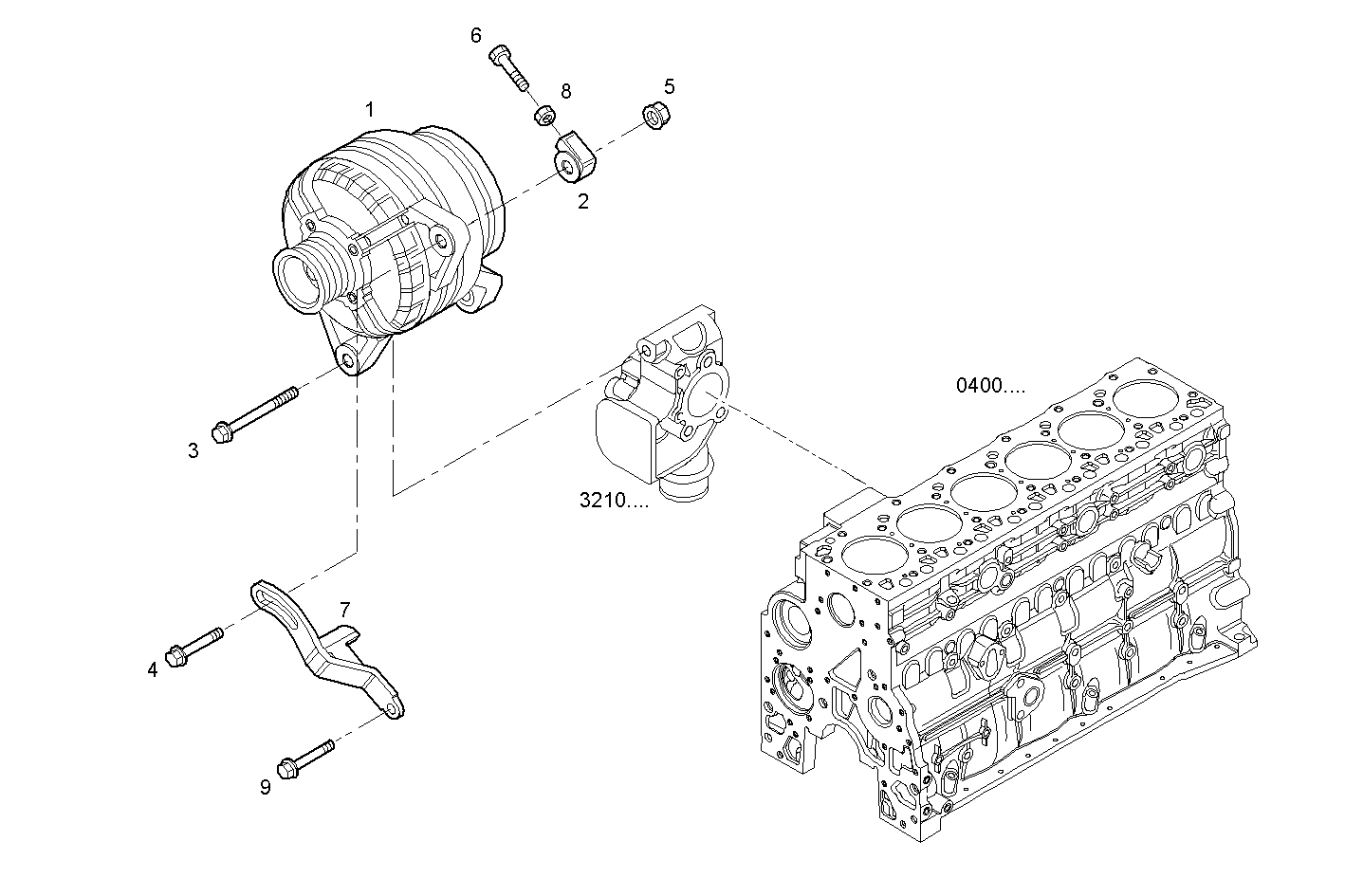

4000.148 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504010576 | ALTERNATOR ASSY |
| 2 | 504010798 | CHOCK |
| 3 | 16599124 | HEXAGON BOLT M10X130 MM |
| 4 | 16587724 | HEXAGON BOLT M10X55 MM |
| 5 | 17044821 | NUT M10 |
| 6 | 15214524 | HEXAGON BOLT M8X100 MM |
| 7 | 504009871 | BELT TENSIONER |
| 8 | 17044731 | HEXAGON NUT M8 |
| 9 | 16586325 | HEXAGON BOLT M8X20 MM |
