N67MNTF40.01A001

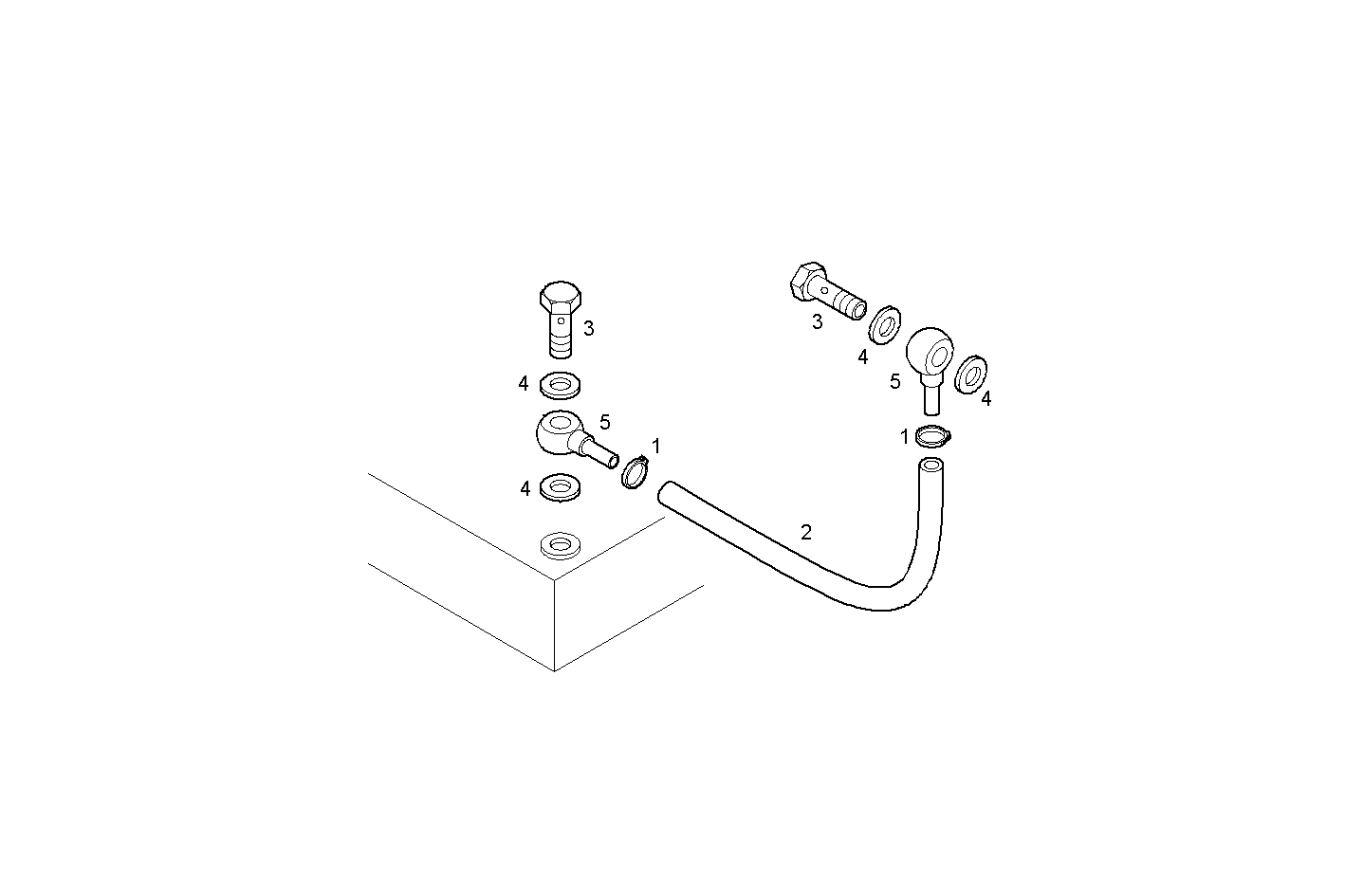

3243.004 RETURN EXPANSION TANK WATER
| Item | Part number | Description |
|---|---|---|
| 1 | 18087993 | CLIP Ø8/16 MM |
| 2 | 17724587 | RUBBER HOSE Ø7,5X14,5 MM |
| 3 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 4 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 5 | 98405514 | PIPE SOCKET |
