N67MNTF40.10

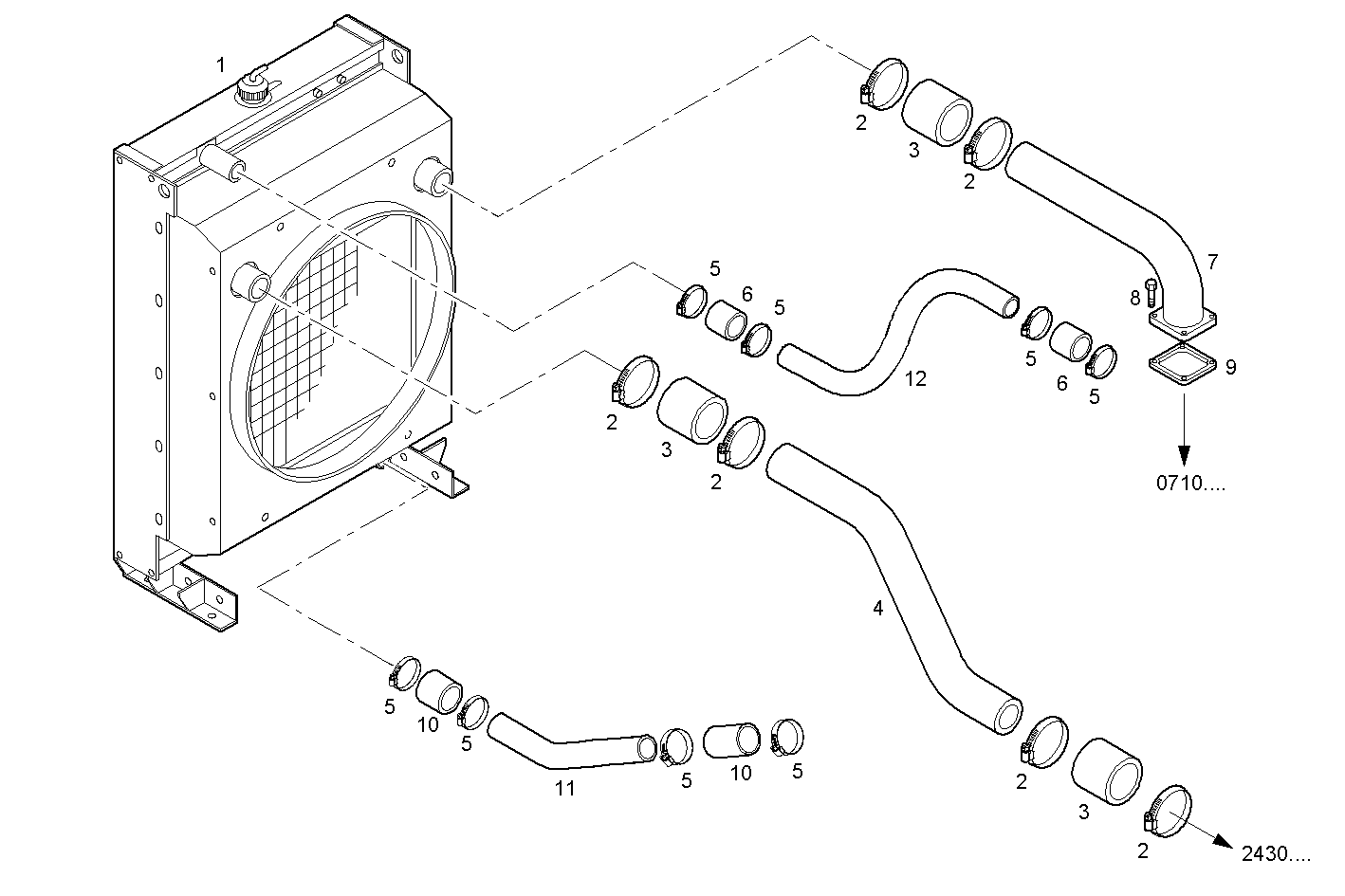

A22010516 RADIATOR 2 CIRCUITS AIR/WATER
| Item | Part number | Description |
|---|---|---|
| 1 | 8043636 | WATER RADIATOR |
| 2 | 18089191 | CLIP |
| 3 | 98443275 | TURBOCHARGER HOSE |
| 4 | 8036923 | AIR PIPE/DUCT |
| 5 | 17764892 | PIPE CLIP Ø40-60 MM |
| 6 | 8043775 | WATER HOSE |
| 7 | 8036924 | AIR PIPE/DUCT |
| 8 | 16673835 | HEXAGON BOLT M8X30 MM |
| 9 | 4899921 | FLAT ENGINE GASKET |
| 10 | 8040142 | RUBBER SLEEVE Ø45x70 MM |
| 11 | 8044968 | WATER PIPE |
| 12 | 8047497 | WATER PIPE |
