N67MNTF41.10

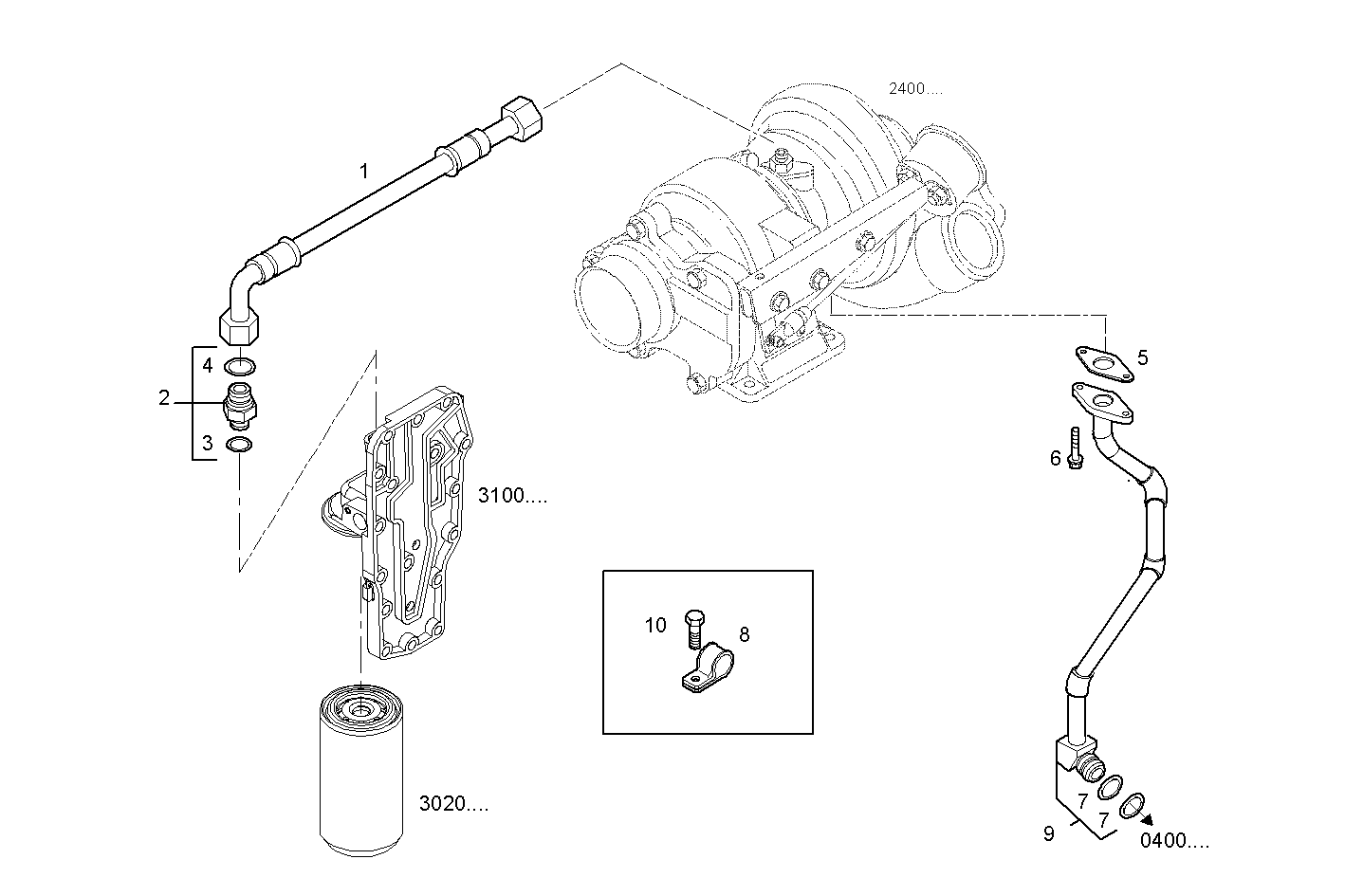

3063.011 TURBOCHARGER OIL LINES
Item | Part number | Description |
---|---|---|
1 | 504084095 | OIL LINE |
2 | 4895107 | THREADED UNION ASSY |
3 | 4899107 | O-RING |
4 | 4899108 | O-RING |
5 | 4891288 | FLAT ENGINE GASKET |
6 | 4899079 | HEXAGON BOLT |
7 | 17281881 | O-RING DIA 17,12 SP 2,62 |
8 | 4896893 | CLIP |
9 | 504107027 | OIL LINE |
10 | 16673635 | HEXAGON BOLT M8X1.25X20 |
