N67MNTM28.11

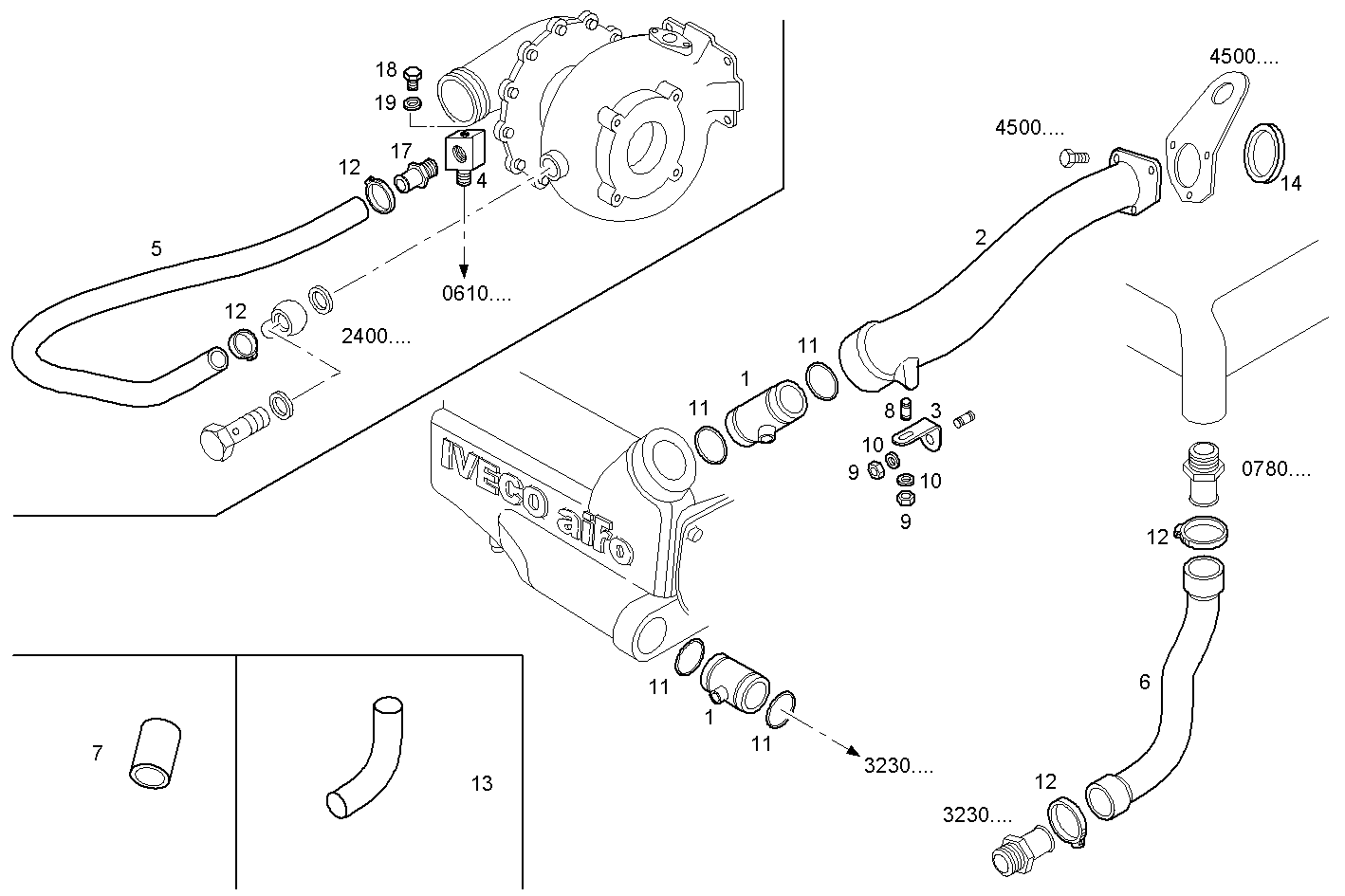

3230.053 WATER PIPE

Iveco/FPT WATER PIPE

Item Part number Description
1 8018308 CONNECTOR SLEEVE
2 8036186 WATER PIPE
3 8031803 FASTENING BRACKET
4 8036937 PIPE SOCKET
5 8037097 WATER PIPE
6 8033541 WATER HOSE
7 8040181 RUBBER SLEEVE
8 16729224 STUD M8X16 MM
9 17037925 HEXAGON NUT M8X1,25
10 17088374 WASHER
11 17289681 O-RING Ø44 MM SP=3,53 MM
12 18088593 CLIP 25x40
13 8037698 RUBBER SLEEVE
14 504078856 RUBBER GASKET
17 8032095 THREADED UNION
18 10300611 LOCK PLUG M14X1,5
19 4858608 SEAL GASKET dia.14x19,5x1,5
