N67MNTM28.11

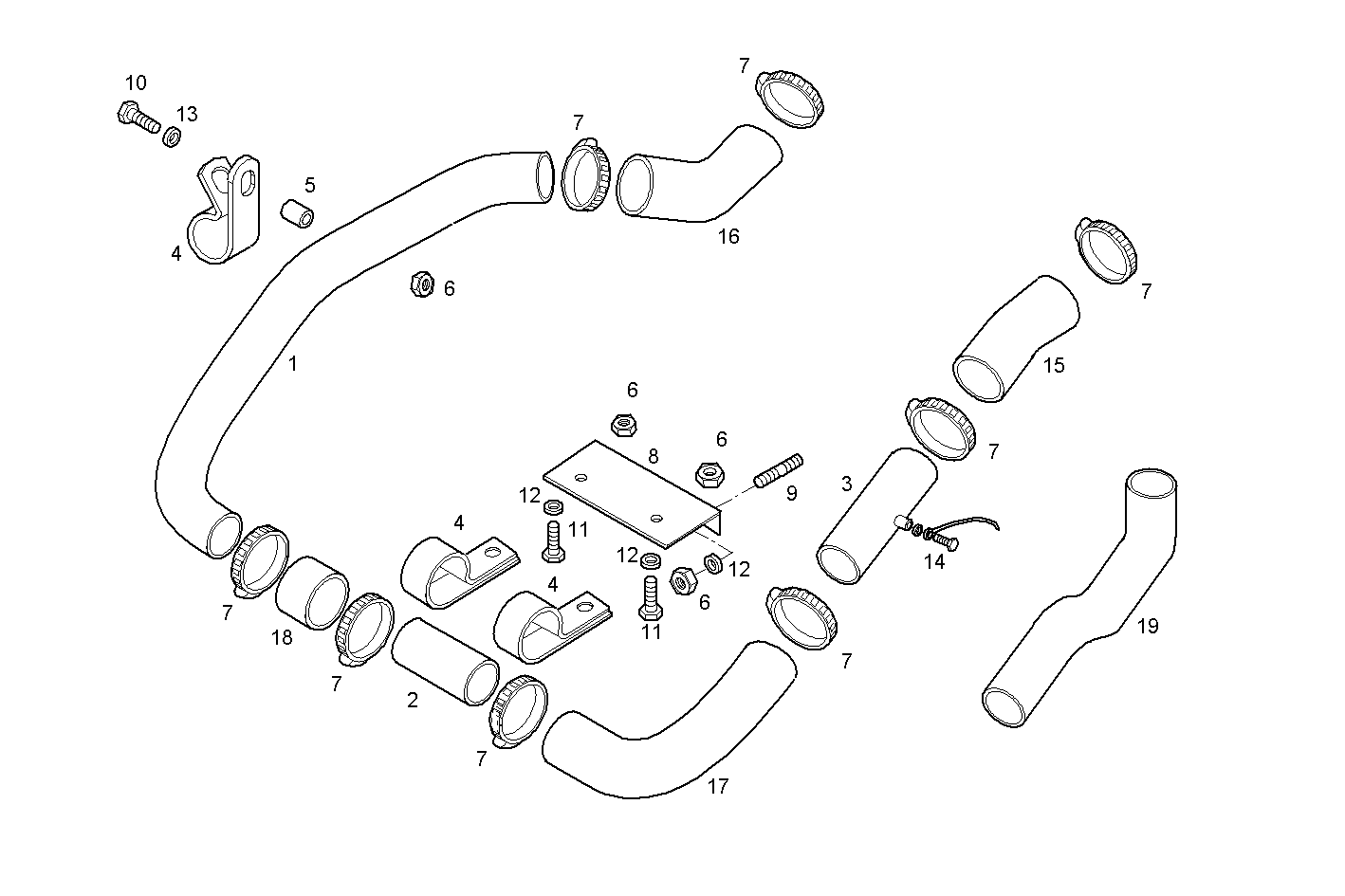

3390.066 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8037336 | SEA WATER PIPE |
| 2 | 8034549 | SEA WATER PIPE |
| 3 | 8034459 | SEA WATER PIPE [UP TO 30/11/05] |
| 4 | 8034457 | CLIP |
| 5 | 8028346 | SPACER BUSH |
| 6 | 17038131 | HEXAGON NUT M10 |
| 7 | 17764894 | CLIP Ø40-60 MM |
| 8 | 8034494 | FASTENING BRACKET |
| 9 | 17368024 | STUD M10X25X30 |
| 10 | 16607924 | HEXAGON BOLT M10X1,5X40 MM |
| 11 | 16607734 | HEXAGON BOLT M10X30 MM |
| 12 | 17090174 | SPRING WASHER Ø10X20 MM |
| 13 | 17095014 | WASHER Ø10X18 MM |
| 14 | 17037821 | HEXAGON NUT M6X1 |
| 15 | 8106646 | RUBBER SLEEVE |
| 16 | 8110207 | WATER HOSE |
| 17 | 98433319 | RUBBER SLEEVE |
| 18 | 4863960 | WATER HOSE |
| 19 | 8043389 | RUBBER SLEEVE |
