N67MNTM28.11

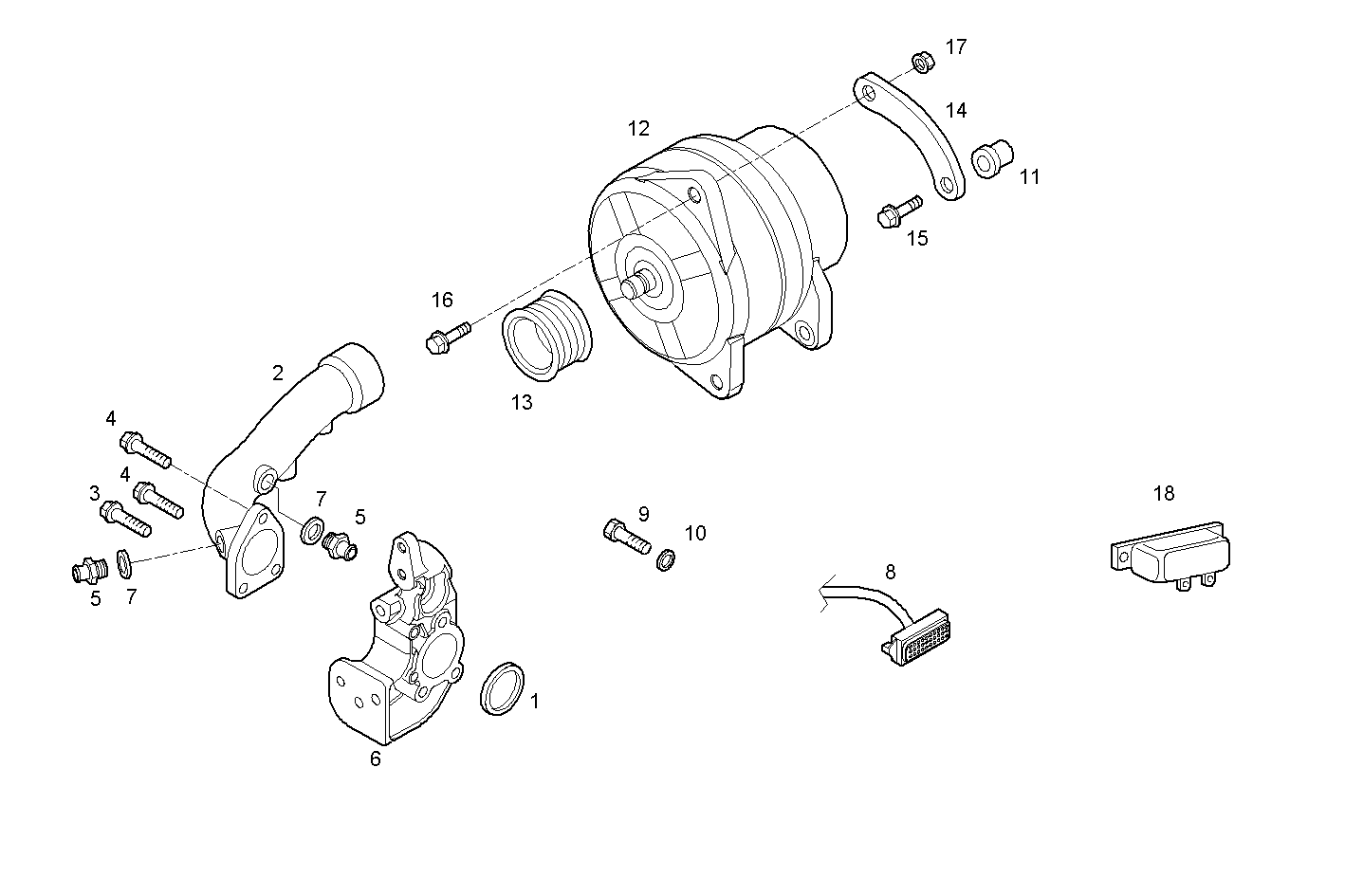

A14240504 SELF-REGULATED ALTERNATOR - 24V - 70A - poles system
Item | Part number | Description |
---|---|---|
1 | 504062710 | WASHER |
2 | 8042837 | WATER PIPE |
3 | 16592925 | HEXAGON BOLT M10X80 MM |
4 | 16599224 | HEXAGON BOLT M10X140 MM |
5 | 8024797 | PIPE SOCKET M30X1,5 |
6 | 8036563 | GENERATOR SUPPORT |
7 | 99434480 | SEAL GASKET Ø30X40 MM |
8 | 8037860 | ENGINE HARNESS |
9 | 16605524 | HEXAGON BOLT M8X20 MM |
10 | 17089574 | WASHER Ø8X16 MM |
11 | 8036564 | SPACING BAR |
12 | 8036232 | ALTERNATOR |
13 | 8036600 | GENERATOR PULLEY |
14 | 8036565 | FASTENING BRACKET |
15 | 16593125 | HEXAGON BOLT M10X100 MM |
16 | 16587125 | HEXAGON BOLT M10X25 MM |
17 | 17044825 | HEXAGON NUT M10 |
18 | 8108575 | RELAY STARTER [up to 12-90] |
