N67MNTM28.11

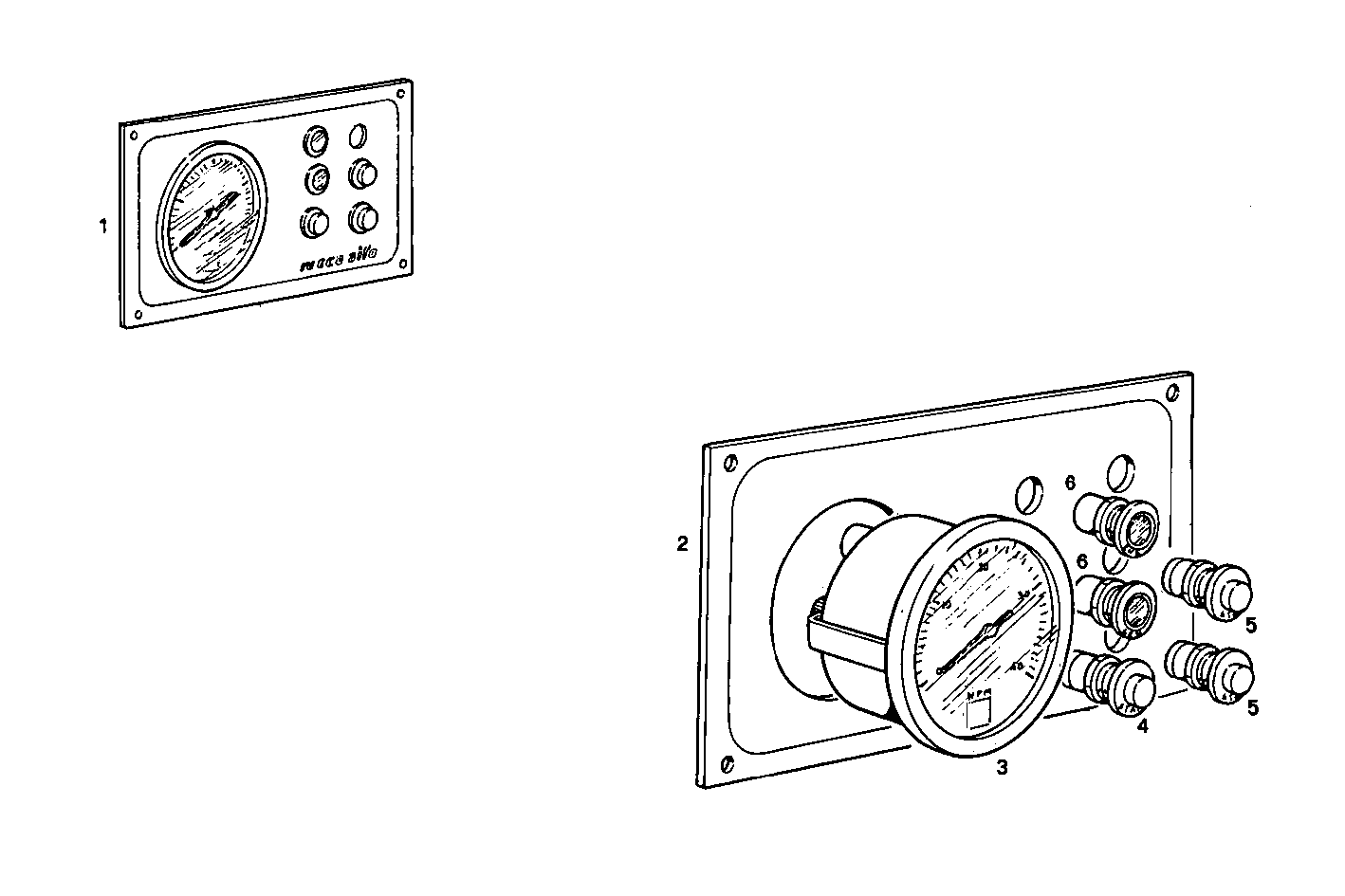

A38870501 ELECTRIC INSTRUMENTS PANEL - fly-bridge 12V
Item | Part number | Description |
---|---|---|
1 | 8025479 | INSTRUMENTS BOARD ASSY FLYNG BRIDGE |
2 | 8108528 | INSTRUMENTS BOARD |
3 | 8030623 | REVOLUTION COUNTER |
4 | 8108529 | PUSH BUTTON STARTER |
5 | 8108530 | PUSH BUTTON STOP |
6 | 8108532 | LUMINOUS INDICATOR |
