N67MNTM28.12

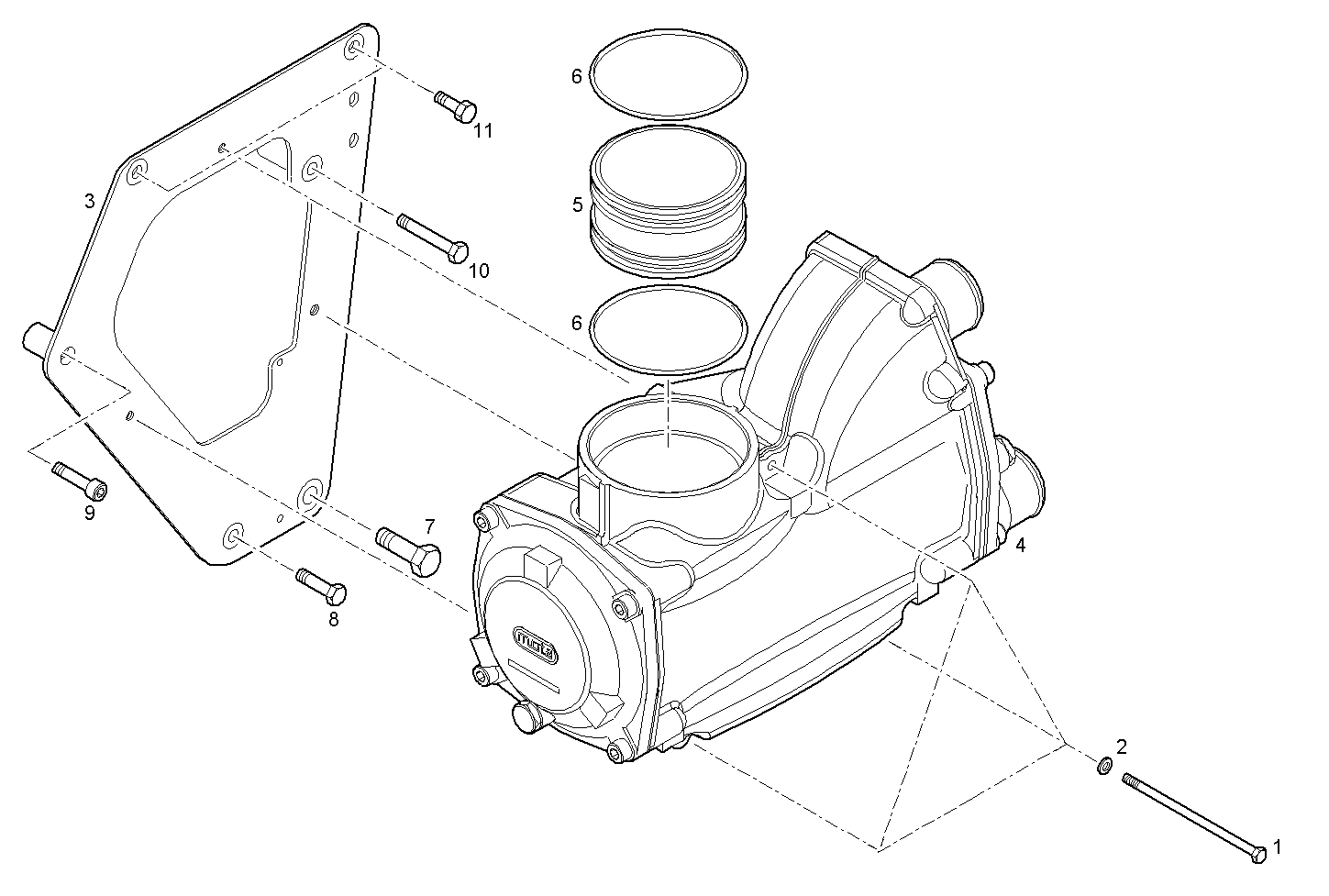

2460.052 AIR - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 16607024 | HEXAGON BOLT M8X120 MM |
| 2 | 17094914 | WASHER 8x16 |
| 3 | 8049694 | SUPPORT |
| 4 | 8046707 | AIR/WATER HEAT EXCHANGER |
| 5 | 8031755 | WATER PIPE |
| 6 | 17297081 | O-RING Ø88,26X5,33 MM |
| 7 | 16678135 | HEXAGON BOLT M12X45 MM |
| 8 | 16586725 | HEXAGON BOLT M8X1.25X40 MM |
| 9 | 16691224 | CYLIND-HEAD SCREW M8X55 MM |
| 10 | 16592525 | HEXAGON BOLT M8X70 MM |
| 11 | 16673735 | HEXAGON BOLT M8X25 MM |
