N67MNTM28.12

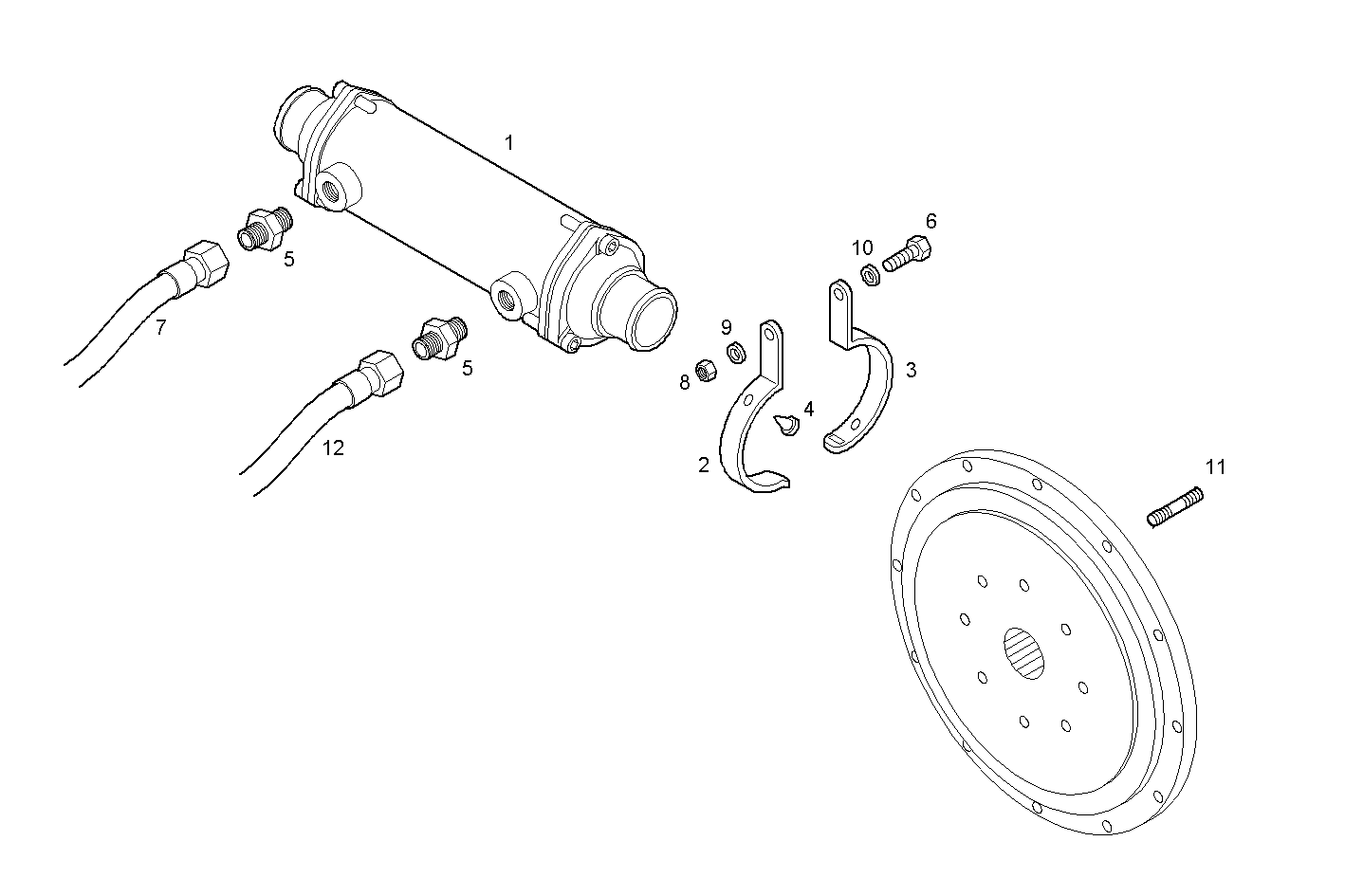

A13620502/01 ARRANGED FOR GEAR MG - MG 5061A
| Item | Part number | Description |
|---|---|---|
| 1 | 8034070 | MARINE GEAR OIL HEAT EXCH |
| 2 | 8034488 | RETAINER |
| 3 | 8034489 | RETAINER |
| 4 | 1366290 | RUBBER LUG |
| 5 | 4935465 | PIPE SOCKET |
| 6 | 16607625 | SCREW M10X25 |
| 7 | 4935778 | OIL HOSE |
| 8 | 17038131 | HEXAGON NUT M10 |
| 9 | 17090174 | SPRING WASHER Ø10X20 MM |
| 10 | 17095004 | WASHER Ø10X18X2 MM |
| 11 | 17368024 | STUD M10X25X30 |
| 12 | 4935779 | HOSE |
