N67MNTM28.12

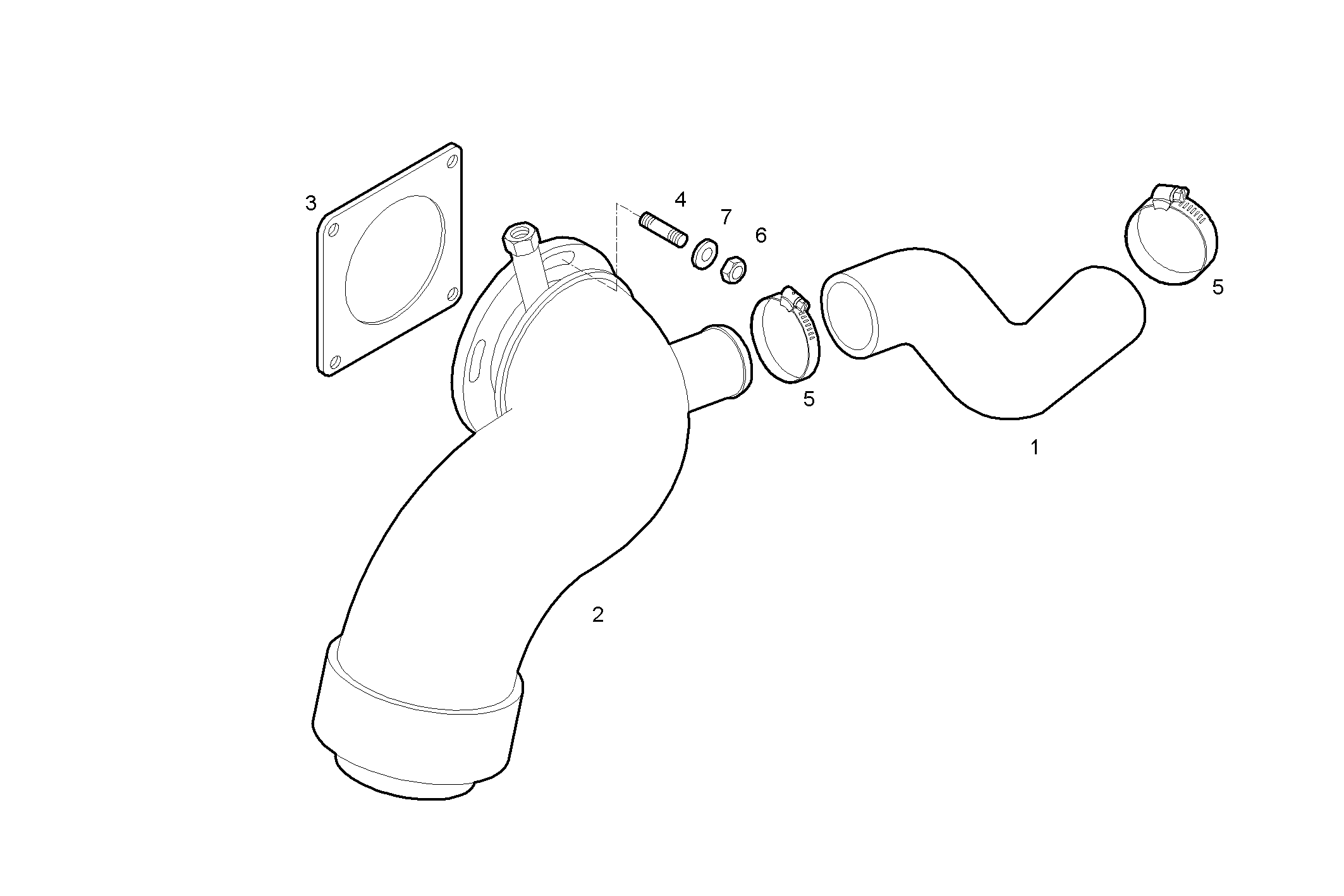

A40050527 GAS-WATER MIXER WITH STERN OUTLET
Item | Part number | Description |
---|---|---|
1 | 8050151 | RUBBER SLEEVE |
2 | 8048177 | MARINE EXHAUST PIPE |
3 | 8040168 | EXH. MANIFOLD GKT |
4 | 16729324 | STUD M8X12X20 MM |
5 | 17764892 | PIPE CLIP Ø40-60 MM |
6 | 17037925 | HEXAGON NUT M8X1,25 |
7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
