N67MNTM28.12

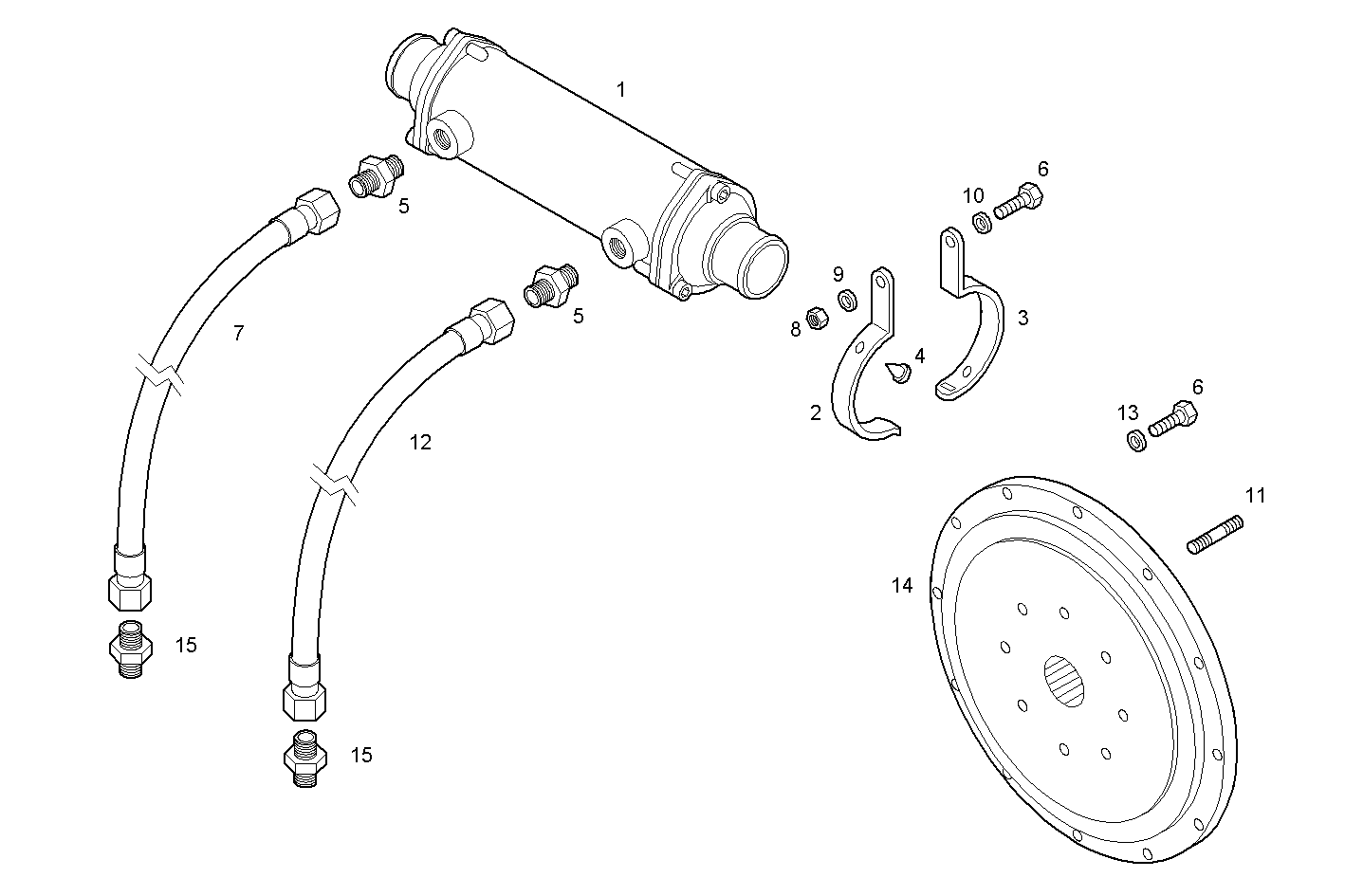

A51570508/01 MARINE GEAR ZF- 220 - ratio 1,235:1

Iveco/FPT MARINE GEAR ZF- 220

Item Part number Description
1 8034070 MARINE GEAR OIL HEAT EXCH
2 8034488 RETAINER
3 8034489 RETAINER
4 1366290 RUBBER LUG
5 4935465 PIPE SOCKET
6 16607624 SCREW M10X25
7 8105620 HOSE
8 17038131 HEXAGON NUT M10
9 17090174 SPRING WASHER Ø10X20 MM
10 17095004 WASHER Ø10X18X2 MM
11 17368024 STUD M10X25X30
12 8105226 HOSE
13 17494934 WASHER Ø10X18,1X2,2 MM
14 8035885 FLEXIBLE COUPLING
15 8101073 PIPE SOCKET
