N67MNTM28.30

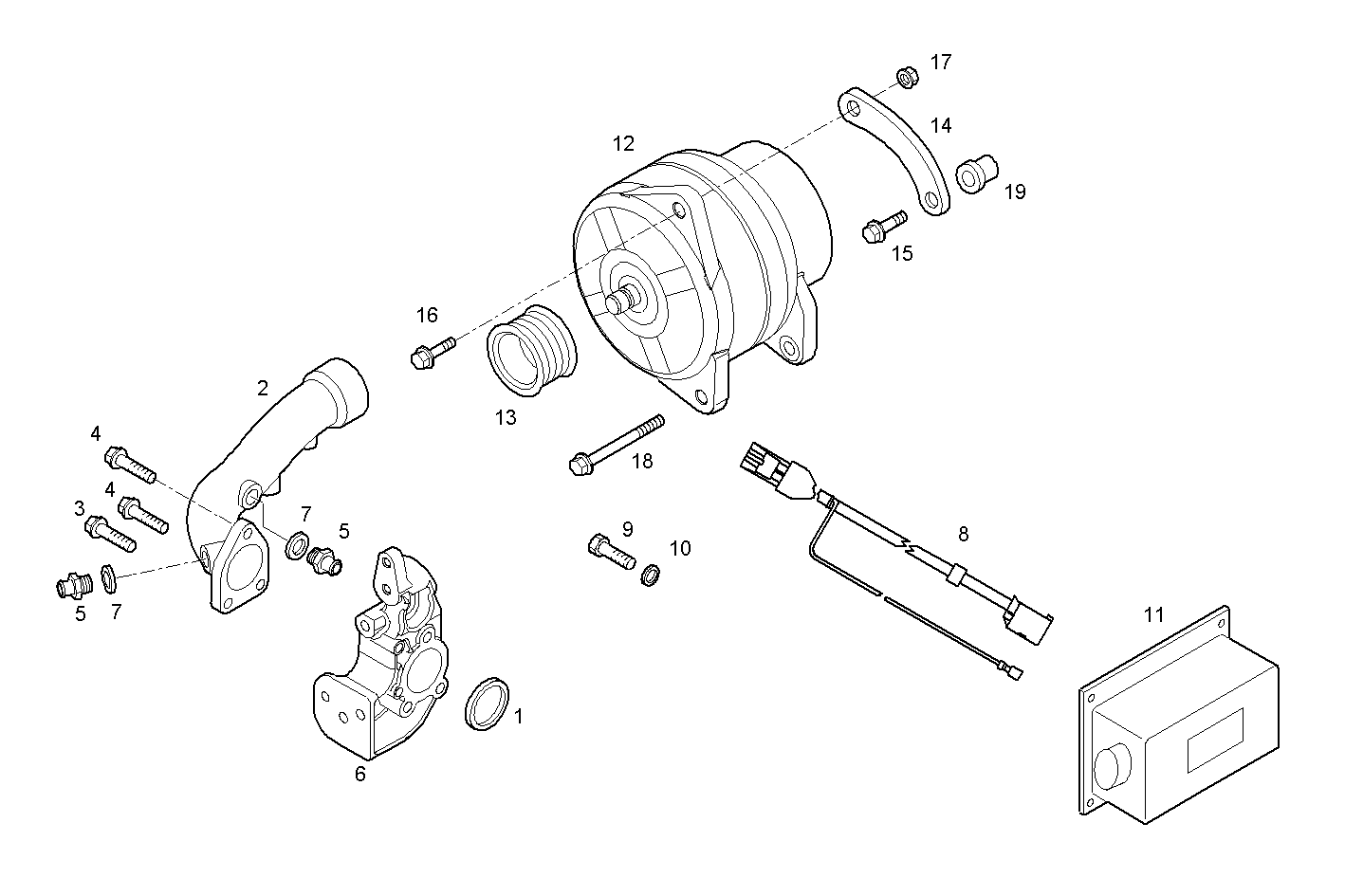

A14240502 SELF-REGULATED ALTERNATOR - 24V - 70A - poles system

Iveco/FPT SELF-REGULATED ALTERNATOR

Item Part number Description
1 504062710 WASHER
2 8033685 WATER PIPE
3 16592925 HEXAGON BOLT M10X80 MM
4 16599224 HEXAGON BOLT M10X140 MM
5 8024797 PIPE SOCKET M30X1,5
6 8036563 GENERATOR SUPPORT
7 99434480 SEAL GASKET Ø30X40 MM
8 8037860 ENGINE HARNESS
9 16605534 HEXAGON BOLT M8X20 MM (10.9)
10 17089574 WASHER Ø8X16 MM
11 8037805 SWITCH PANEL 24V
12 8036232 ALTERNATOR
13 8036600 GENERATOR PULLEY
14 8036565 FASTENING BRACKET
15 16593125 HEXAGON BOLT M10X100 MM
16 16587125 HEXAGON BOLT M10X25 MM
17 17044821 NUT M10
19 8036564 SPACING BAR
