N67MNTM28.30

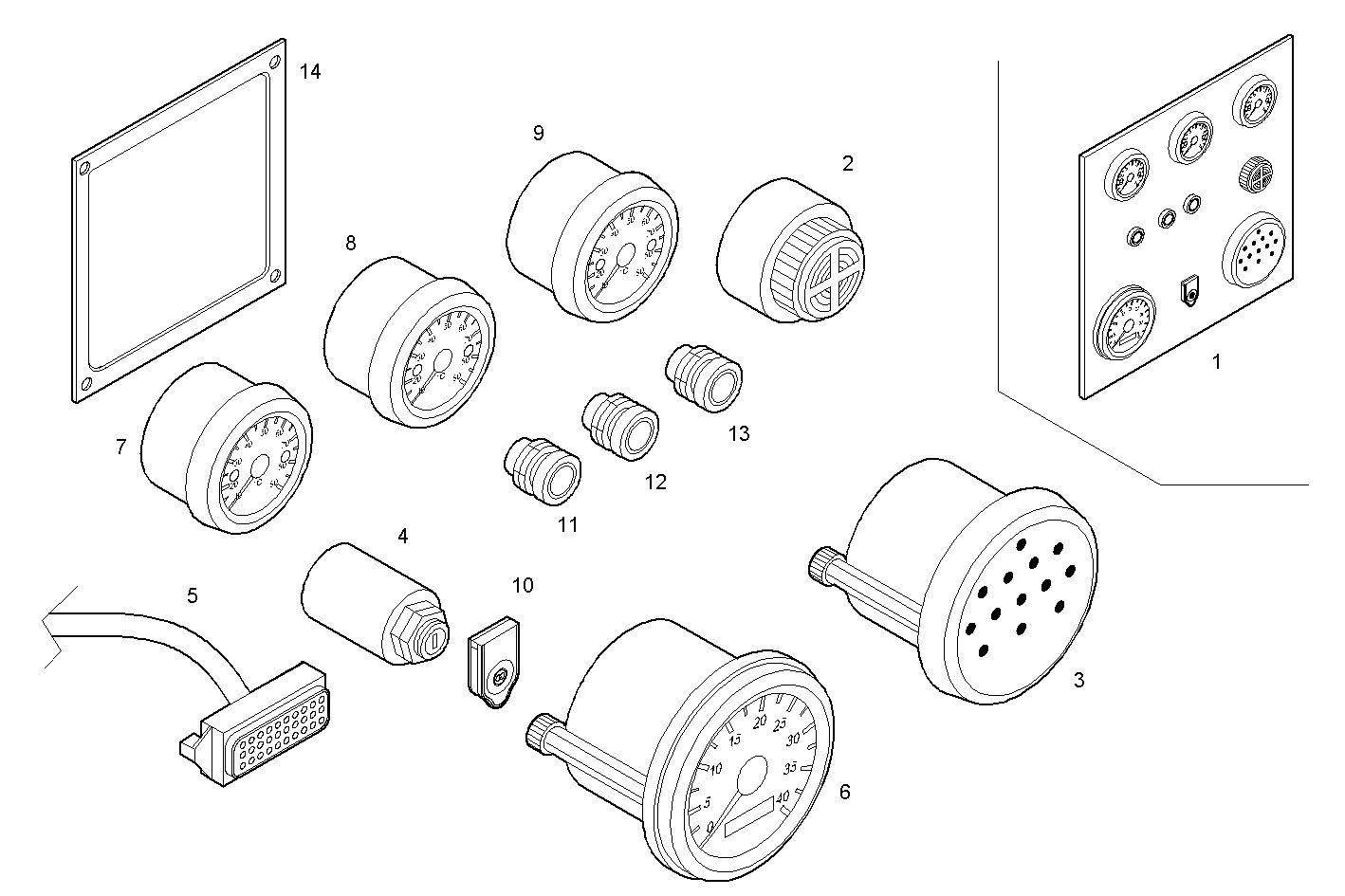

A38770506 ELECTRIC INSTRUMENTS PANEL - 12V analog. + lead ext. 7 mt.

Iveco/FPT ELECTRIC INSTRUMENTS PANEL

Item Part number Description
1 8037766 CONTROL BOARD ASSY ASSY
2 8035166 ACOUSTIC HORN
3 8034892 WARNING LIGHT
4 8035169 SWITCH
5 8035695 WIRE/CABLE
6 8036144 REVOLUTION COUNTER
7 8036150 THERMOMETER
8 8036149 PRESSURE GAUGE
9 8036148 VOLTMETER
10 8035172 COVER
11 8036409 PUSH BUTTON BLACK COL.
12 8035712 PUSH BUTTON
13 8036411 PUSH BUTTON RED
14 8044808 SEAL GASKET
