N67MNTM28.31

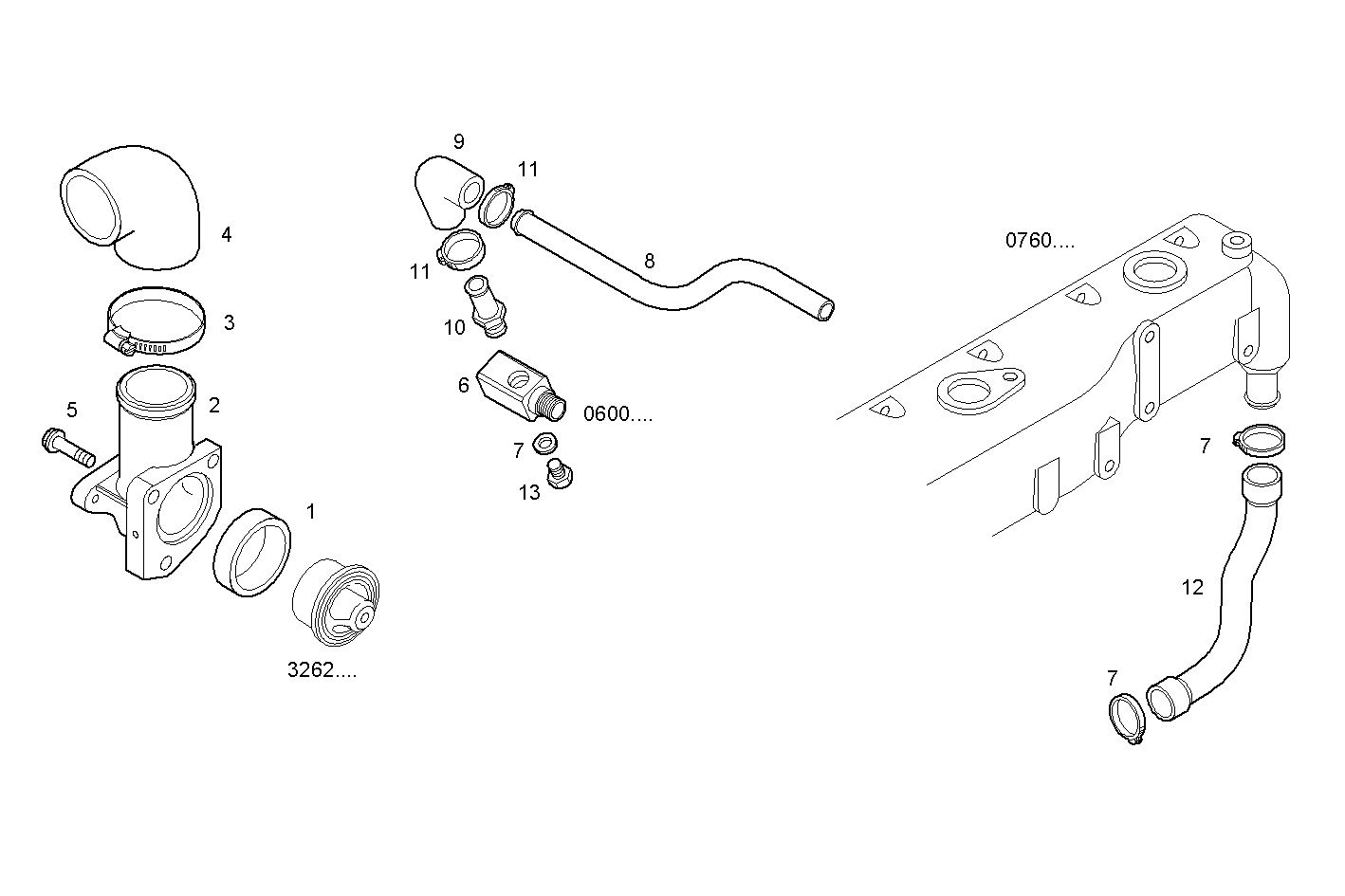

3210.318 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 504078856 | RUBBER GASKET |
| 2 | 504079269 | THERMOSTAT BODY |
| 3 | 17764892 | PIPE CLIP Ø40-60 MM |
| 4 | 98433319 | RUBBER SLEEVE |
| 5 | 4899091 | HEXAGON BOLT |
| 6 | 8036937 | PIPE SOCKET |
| 7 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 8 | 8037097 | WATER PIPE |
| 9 | 4605529 | RUBBER SLEEVE |
| 10 | 8032095 | THREADED UNION |
| 11 | 18088593 | CLIP 25x40 |
| 12 | 8040140 | RUBBER SLEEVE |
| 13 | 10300611 | LOCK PLUG M14X1,5 |
