N67MNTM28.31

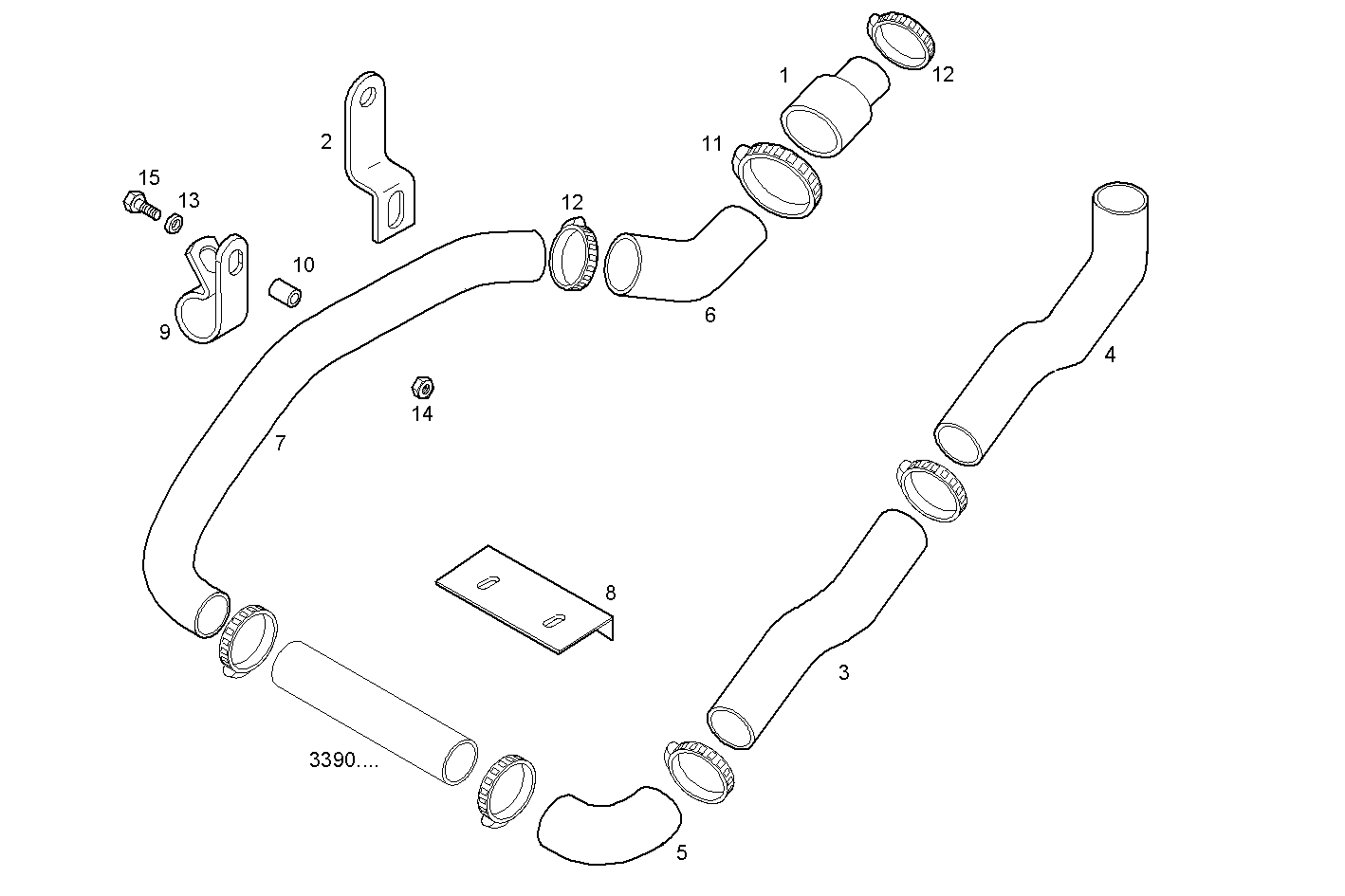

3390.076 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8043534 | RUBBER SLEEVE |
| 2 | 8043395 | FASTENING BRACKET [FROM 12/10/05] |
| 3 | 8043393 | SEA WATER PIPE |
| 4 | 8043389 | RUBBER SLEEVE |
| 5 | 8040155 | RUBBER SLEEVE |
| 6 | 8040142 | RUBBER SLEEVE Ø45x70 MM |
| 7 | 8037336 | SEA WATER PIPE |
| 8 | 8034494 | FASTENING BRACKET |
| 9 | 8034457 | CLIP |
| 10 | 8028346 | SPACER BUSH |
| 11 | 17764993 | CLIP Ø50/70 MM |
| 12 | 17764893 | CLIP Ø40/60 MM |
| 13 | 17090174 | SPRING WASHER Ø10X20 MM |
| 14 | 17038131 | HEXAGON NUT M10 |
| 15 | 16607924 | HEXAGON BOLT M10X1,5X40 MM |
