N67MNTX20.00A010

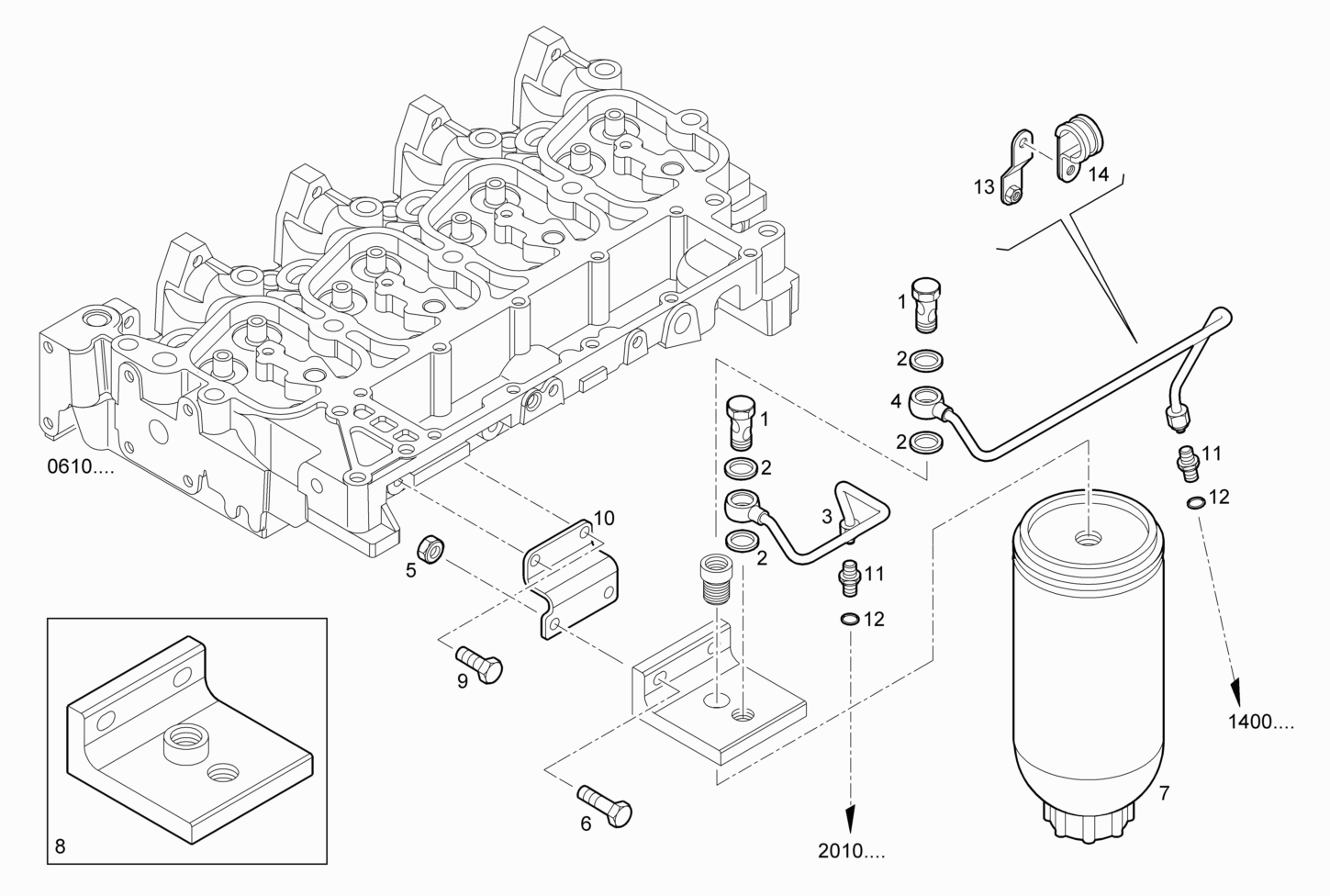

2000.035 FUEL FILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 504266555 | BANJO BOLT M14X1,5X30 MM |
| 2 | 98474308 | SEAL GASKET Ø14X22 MM |
| 3 | 8048195 | FUEL LINE |
| 4 | 8050329 | FUEL LINE |
| 5 | 17044725 | HEXAGON NUT M8 |
| 6 | 16673735 | HEXAGON BOLT M8X25 MM |
| 7 | 504048025 | FUEL FILTER CARTRIDGE |
| 8 | 8037457 | FUEL FILT.SUPPORT |
| 9 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 10 | 8048193 | FASTENING BRACKET |
| 11 | 16500114 | THREADED UNION M12X1,5 - M14X1,5 |
| 12 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 13 | 8107203 | RETAINER |
| 14 | 10450090 | PIPE CLIP Ø8 MM |
