N67MSAE00.00

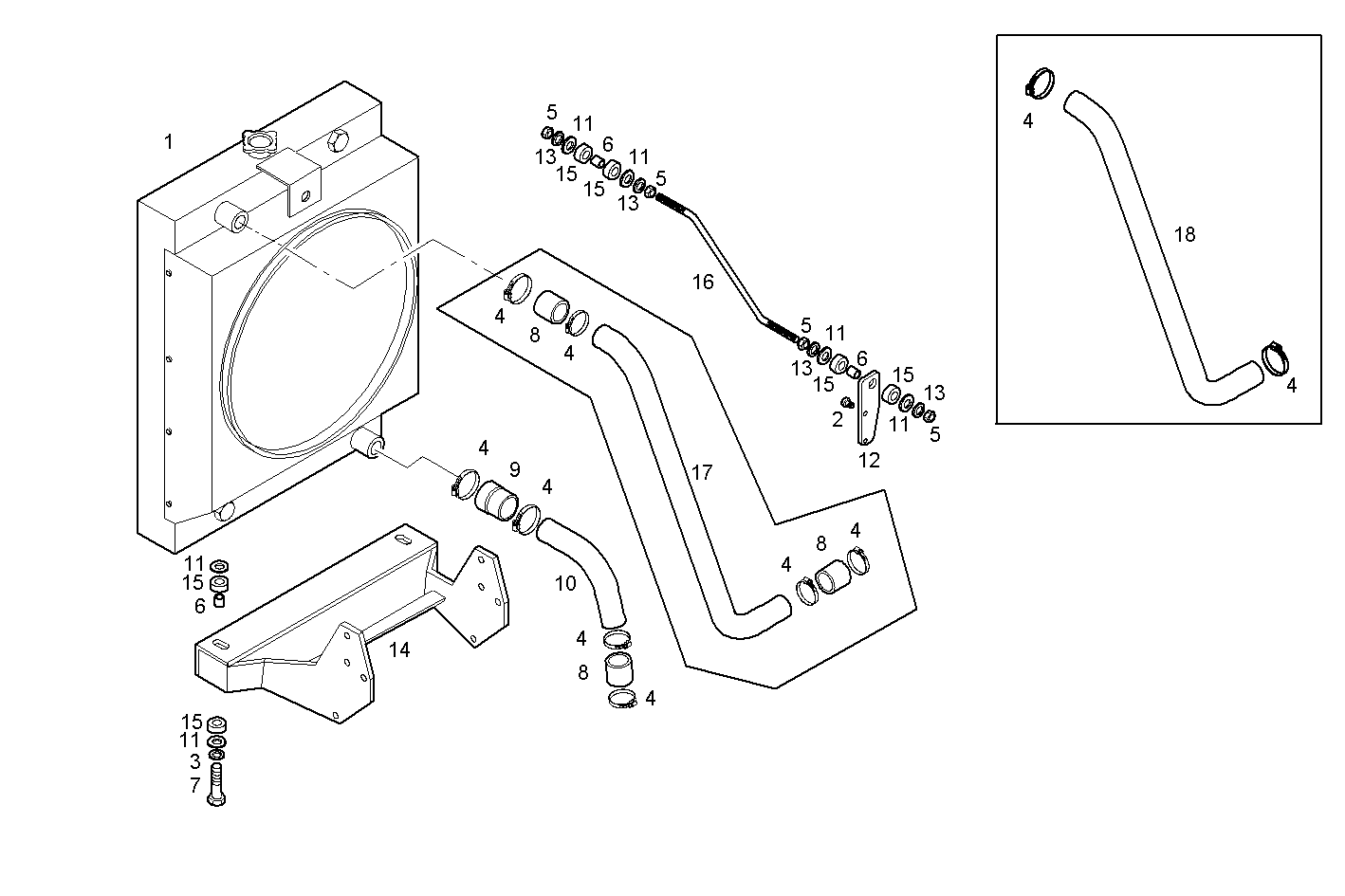

A22010509 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 8034880 WATER RADIATOR
2 16673635 HEXAGON BOLT M8X1.25X20
3 17090274 WASHER Ø10X20 MM
4 17764991 CLIP Ø50/70 MM
5 17038425 HEXAGON NUT M12 (8)
6 741571 SPACING BAR Ø10X17 MM SP=2,3
7 16608525 HEXAGON BOLT M10X1,5X70 MM (8.8)
8 4863960 WATER HOSE
9 8036102 WATER HOSE
10 8035801 WATER PIPE
11 741570 WASHER Ø10X17 MM SP=2,3
12 8037825 RETAINER
13 17091074 WASHER Ø12X24X2,8 MM
14 8037826 SUPPORT
15 741569 RUBBER LUG
16 8037830 TIE ROD
17 8033603 WATER PIPE [UP TO 31-05-06]
18 8045294 WATER HOSE
