N67MSTD20.00

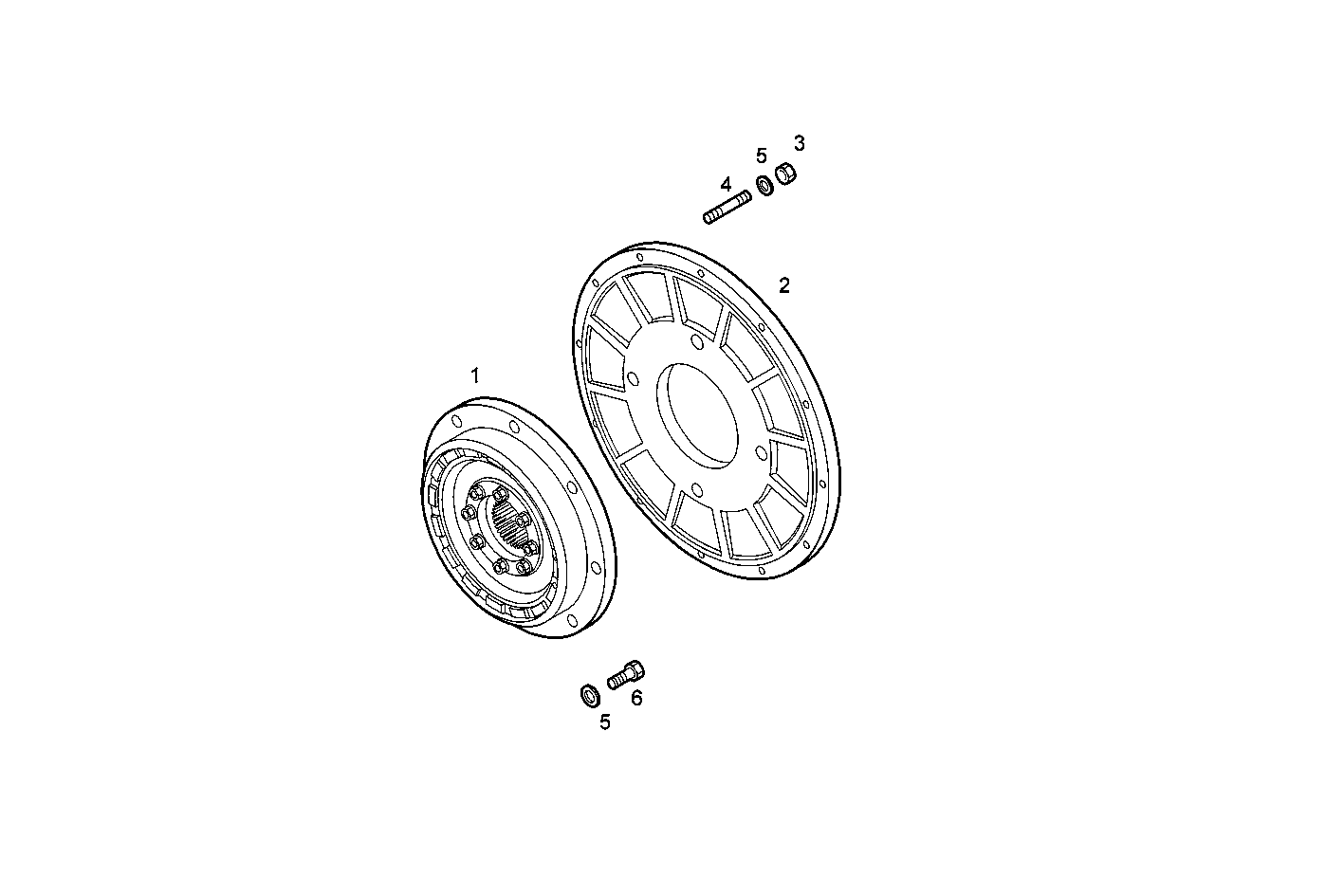

A13060504 FLYWHEEL ARRANGED FOR TRANSMISSION - HYDROMATIK A4AVG125
| Item | Part number | Description |
|---|---|---|
| 1 | 8107310 | FLEXIBLE COUPLING |
| 2 | 8021568 | FLANGE |
| 3 | 17038131 | HEXAGON NUT M10 |
| 4 | 16748624 | STUD M10X30 MM |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 16607625 | SCREW M10X25 |
