N67MSTD23.00A801

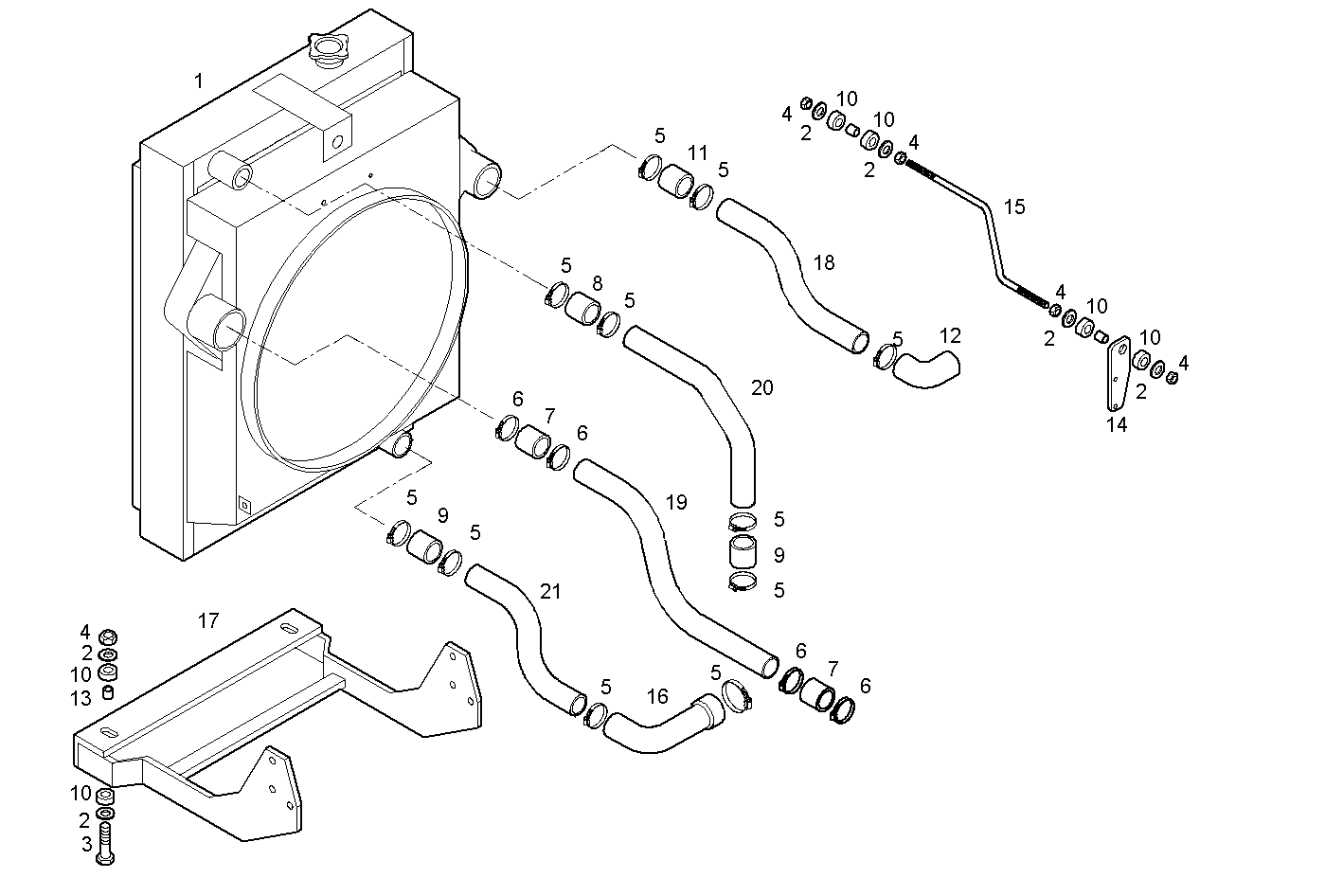

3300.026 RADIATOR
Item | Part number | Description |
---|---|---|
1 | 8037784 | WATER RADIATOR ASSY |
2 | 741570 | WASHER Ø10X17 MM SP=2,3 |
3 | 16588824 | HEXAGON BOLT M12X1,75X70 MM |
4 | 16750425 | HEXAGON NUT M12 |
5 | 17764991 | CLIP Ø50/70 MM |
6 | 17765191 | CLIP Ø70/90 MM |
7 | 98443275 | TURBOCHARGER HOSE |
8 | 4863960 | WATER HOSE |
9 | 8039348 | RUBBER SLEEVE |
10 | 741569 | RUBBER LUG |
11 | 8036376 | WATER HOSE |
12 | 8036359 | RUBBER SLEEVE |
13 | 8108634 | SPACING BAR |
14 | 8037825 | RETAINER |
15 | 8037523 | TIE ROD |
16 | 8039375 | RUBBER SLEEVE |
17 | 8039322 | SUPPORT |
18 | 8039354 | AIR PIPE/DUCT |
19 | 8039351 | AIR PIPE/DUCT |
20 | 8037546 | WATER PIPE |
21 | 8037541 | WATER PIPE |
