NEF45AM1-6.A003

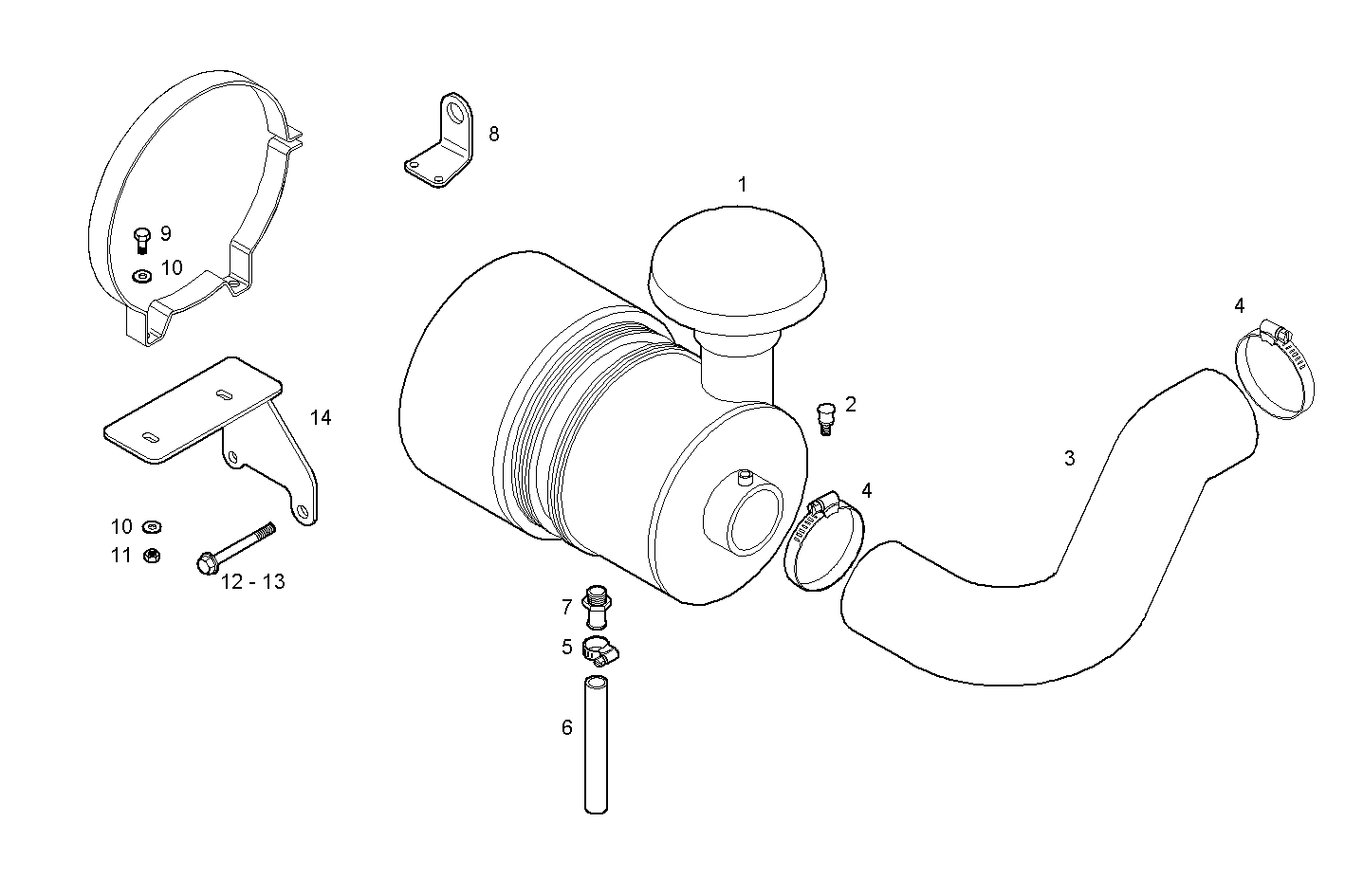

A21210529 AIR CLEANER
Item | Part number | Description |
---|---|---|
1 | 8042429 | AIR CLEANER |
2 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
3 | 8041753 | FILTER HOSE |
4 | 17765291 | CLIP Ø80/100 MM |
5 | 18088392 | CLIP Ø16/25 MM |
6 | 504147024 | RUBBER SLEEVE |
7 | 60181655 | PIPE SOCKET |
8 | 8037489 | HOOK |
9 | 16605524 | HEXAGON BOLT M8X20 MM |
10 | 17089874 | WASHER Ø8X22 MM |
11 | 17037925 | HEXAGON NUT M8X1,25 |
12 | 16599724 | HEXAGON BOLT M12X130 MM |
13 | 16592925 | HEXAGON BOLT M10X80 MM |
14 | 8041750 | FILTER SUPPORT |
