NEF45SM1F.S500

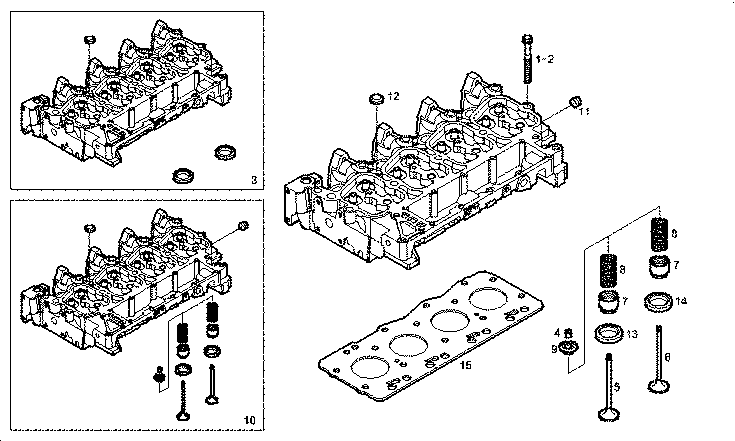

101887 CYLINDER HEAD-COVERS

Iveco/FPT CYLINDER HEAD-COVERS

Item Part number Description
1 4892861 HEXAGON BOLT M15X1,75
2 4892859 HEXAGON BOLT M15X1,75
3 504226952 CYLINDER HEAD
4 4895183 VALVE CONE
5 4895188 EXHAUST VALVE
6 4895187 INLET VALVE
7 4895347 CAP
8 4895215 ENGINE VALV.SPRING
9 4895184 SPRING CAP
10 8097616 CYLINDER HEAD with elements (valves, springs...)
11 4895085 PLUG
12 4895179 LOCK PLUG
13 4897178 VALVE SEAT STD. INTAKE
14 4897179 VALVE SEAT STD. EXHAUST
15 2830919 CYL.HEAD GASKET
