NEF45SM1F.S500

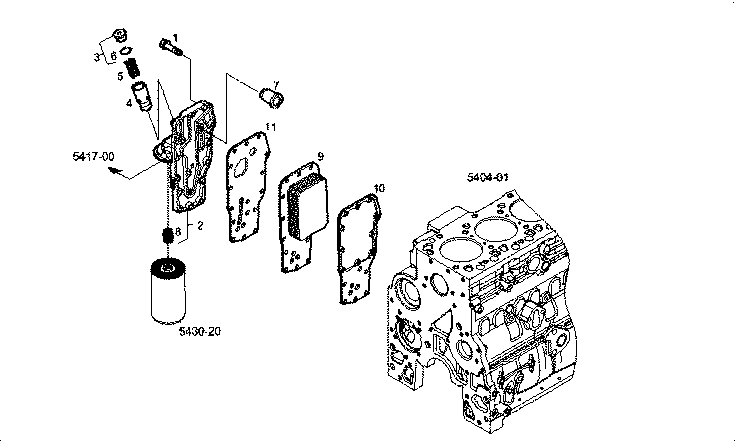

101906 HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 4899019 | HEXAGON BOLT M8X35 MM |
| 2 | 4899643 | HEAT EXANGER BODY ASSY |
| 3 | 504096409 | THREADED PLUG ASSY [FROM # 155900] |
| 4 | 4896404 | VALVE HOUSING |
| 5 | 4895045 | VALVE SPRING |
| 6 | 17916280 | O-RING [FROM # 155900] |
| 7 | 4896410 | VALVE |
| 8 | 4893391 | THREADED UNION |
| 9 | 504047616 | OIL COOLER |
| 10 | 2830559 | FLAT ENGINE GASKET |
| 11 | 4896409 | FLAT ENGINE GASKET |
