NEF45SM1F.S500

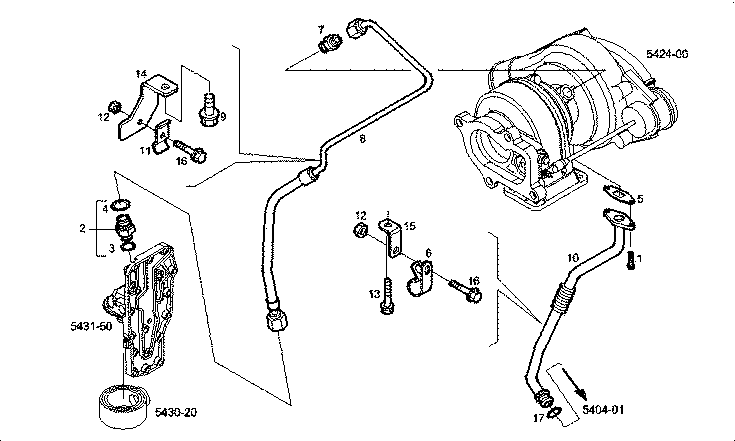

101910 TURBOCHARGER OIL LINES
| Item |
Part number |
Description |
|
1 |
4895164 |
HEXAGON BOLT |
|
2 |
4895107 |
THREADED UNION ASSY |
|
3 |
4899107 |
O-RING |
|
4 |
4899108 |
O-RING |
|
5 |
4899467 |
FLAT ENGINE GASKET |
|
6 |
4899519 |
BRACKET |
|
7 |
504010815 |
THREADED UNION |
|
8 |
504036457 |
OIL LINE |
|
9 |
16677735 |
HEXAGON BOLT M12X25 MM |
|
10 |
504033527 |
OIL LINE |
|
11 |
98487328 |
FASTENING BRACKET |
|
12 |
17044625 |
HEXAGON NUT M6 |
|
13 |
18138325 |
HEXAGON BOLT M8X16 MM |
|
14 |
504055059 |
FASTENING BRACKET |
|
15 |
504053894 |
FASTENING BRACKET |
|
16 |
18137825 |
HEXAGON BOLT M6X16 |
|
17 |
17281881 |
O-RING DIA 17,12 SP 2,62 |
