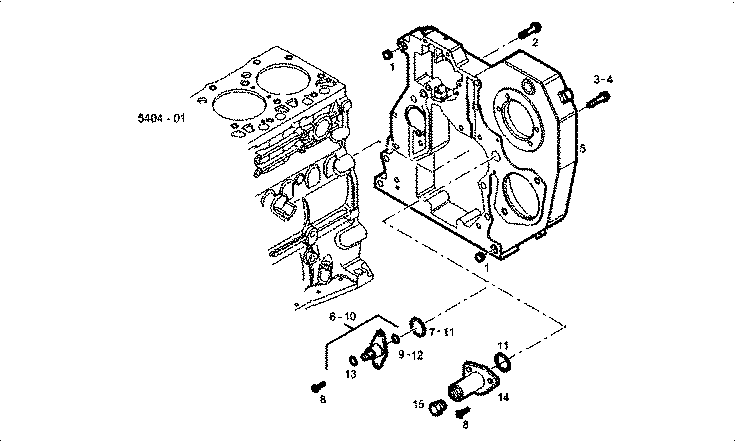

Item |
Part number |
Description |
1 |
4899026 |
DOWEL PIN |
2 |
4899091 |
HEXAGON BOLT |
3 |
4899093 |
HEXAGON BOLT |
4 |
4899073 |
HEXAGON BOLT |
5 |
504095648 |
TIMINGGEAR HOUSIN |
6 |
4895356 |
CONNECTING PLATE ASSY [UP TO # 161404] |
7 |
4895357 |
SEAL GASKET [UP TO # 161404] |
8 |
4895355 |
SHEAR SCREW M5X17 MM |
9 |
4895418 |
O-RING [UP TO # 161404] |
10 |
504074001 |
LOCKING PLATE ASSY [FROM # 161405] |
11 |
17278780 |
O-RING [FROM # 161405] |
12 |
17278090 |
O-RING [FROM # 161405] |
13 |
504079852 |
SPRING LOCKWASHER [FROM # 161405] |
14 |
504170787 |
LOCKING PLATE [FROM # 295152] |
15 |
16882515 |
PLUG [FROM # 295152] |
