Catalogue Menu

NEF45TE1F.S550

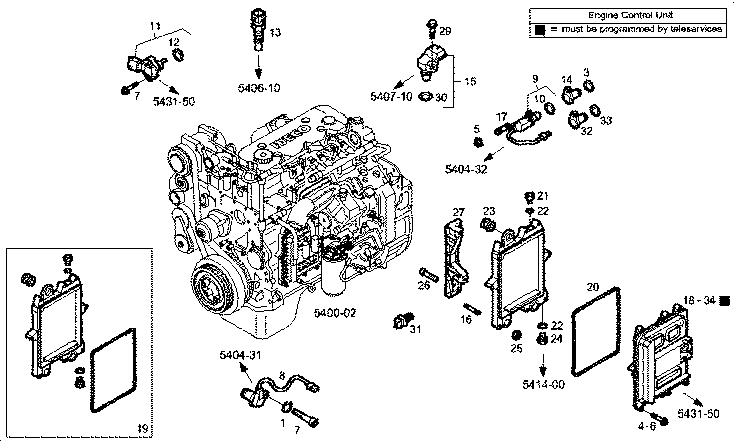

41390 ELECTRONIC INJECTION GROUP

Iveco/FPT ELECTRONIC INJECTION GROUP

Item Part number Description
1 4899124 WASHER
3 17278881 O-RING Ø23,5 MM SP=1,7 MM
4 4899078 HEXAGON BOLT
5 17037821 HEXAGON NUT M6X1
6 16586024 HEXAGON BOLT M6X30 MM
7 4899110 HEXAGON BOLT
8 4890189 SENSOR SPEED
9 4890190 SENSOR SPEED
10 17278481 O-RING Ø17,17 MM SP=1,78 MM
11 4890193 SENSOR OIL PRESS. & TEMPER.
12 4895477 O-RING
13 4897224 SENSOR TEMPERATURE
14 4892255 PIPE SOCKET
15 504073323 SENSOR AIR PRESS. & TEMPER. [FROM # 158928]
16 16727824 STUD M6X25 MM
17 4895157 STUD
18 504122542 ECU-ENGINE
19 504093661 SUPPORT M12X1,5
20 4896811 GASKET
21 4896542 THREADED UNION M12X1,5
22 93156604 SEAL GASKET
23 98498817 DOWEL
24 4890964 THREADED UNION M12X1,5
25 4899057 HEXAGON NUT M8X1,25X25
26 16689324 SCREW M6X25
27 4897685 BRACKET
29 4895817 HEXAGON BOLT [FROM # 158928]
30 42546555 O-RING [FROM # 158928]
31 4897302 SPRING CLAMP
32 504356683 CONNECTOR
33 17278781 O-RING Ø21,95 MM SP=1,78 MM
34 2996409 ECU-ENGINE EDC
