NEF45TE1F.S551

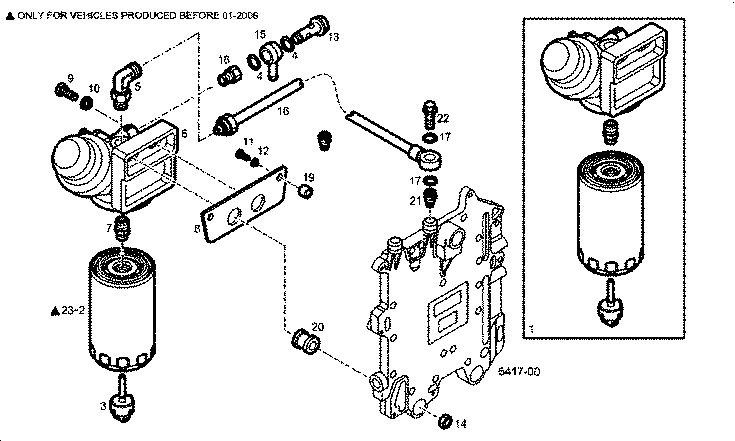

96748 FUEL PREFILTER

Iveco/FPT FUEL PREFILTER

Item Part number Description
1 504057743 PREFILTER ASSY
2 2992662 FUEL FILTER ELEM.
3 42540203 SENSOR WATER
4 98474308 SEAL GASKET Ø14X22 MM
5 8025927 ELBOW COUPLING
6 42545573 FUEL FILT.SUPPORT
7 42545574 THREADED UNION
8 8046639 RETAINER
9 16675835 HEXAGON BOLT M10X30 MM
10 16665604 WASHER Ø10X20 MM
11 16586625 HEXAGON BOLT M8X35 MM
12 17094914 WASHER 8x16
13 504266555 BANJO BOLT M14X1,5X30 MM
14 17038131 HEXAGON NUT M10
15 98404884 SWIVEL COUPLING
16 8019054 HOSE L=300 MM
17 98474306 WASHER Ø12X20 MM SP=1,9 MM
18 8035773 THREADED UNION
19 4791744 SPACING BAR
20 4899791 RUBBER PAD
21 4935560 PIPE SOCKET
22 504081281 SCREW CONNECTOR M12X1,5
23 500039731 FUEL FILTER ELEMEMT VL
