NEF45TE3Y.S500

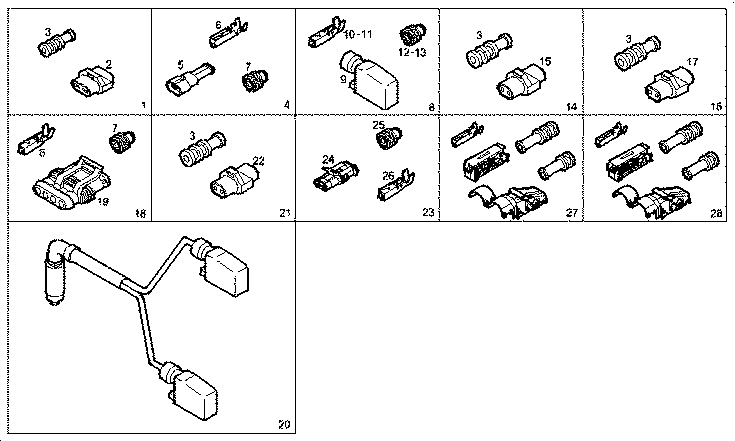

163820 AFTER TREATMENT-ELECTR.PARTS
Item | Part number | Description |
---|---|---|
1 | 8045175 | WIRE CONNECTOR ASSY |
2 | 16849487 | WIRE CONNECTOR |
3 | 500382761 | RUBBER BUSH BLUE |
4 | 8045172 | WIRE CONNECTOR ASSY |
5 | 504154752 | CONNECTION |
6 | 16852154 | TERMINAL |
7 | 16849983 | GASKET |
8 | 8045173 | CONNECTION ASSY |
9 | 504144930 | WIRE CONNECTOR |
10 | 12309290 | TERMINAL |
11 | 12309390 | TERMINAL |
12 | 4835259 | GASKET |
13 | 12309080 | GASKET |
14 | 8045169 | CONNECTION ASSY |
15 | 16849387 | WIRE CONNECTOR |
16 | 8045170 | CONNECTION ASSY |
17 | 16849388 | WIRE CONNECTOR |
18 | 8045174 | WIRE CONNECTOR ASSY |
19 | 504145901 | PLUG COUPLING |
20 | 5801496823 | WIRE/CABLE |
21 | 8045171 | WIRE CONNECTOR ASSY |
22 | 504147376 | CONNECTION |
23 | 8031989 | WIRE CONNECTOR ASSY |
24 | 98435346 | WIRE CONNECTOR 2 pin female |
25 | 4861936 | RUBBER BUSH YELLOW |
26 | 98435372 | TERMINAL |
27 | 5801497483 | WIRE CONNECTOR |
28 | 5801497485 | WIRE CONNECTOR |
