NEF45TM1.1A558

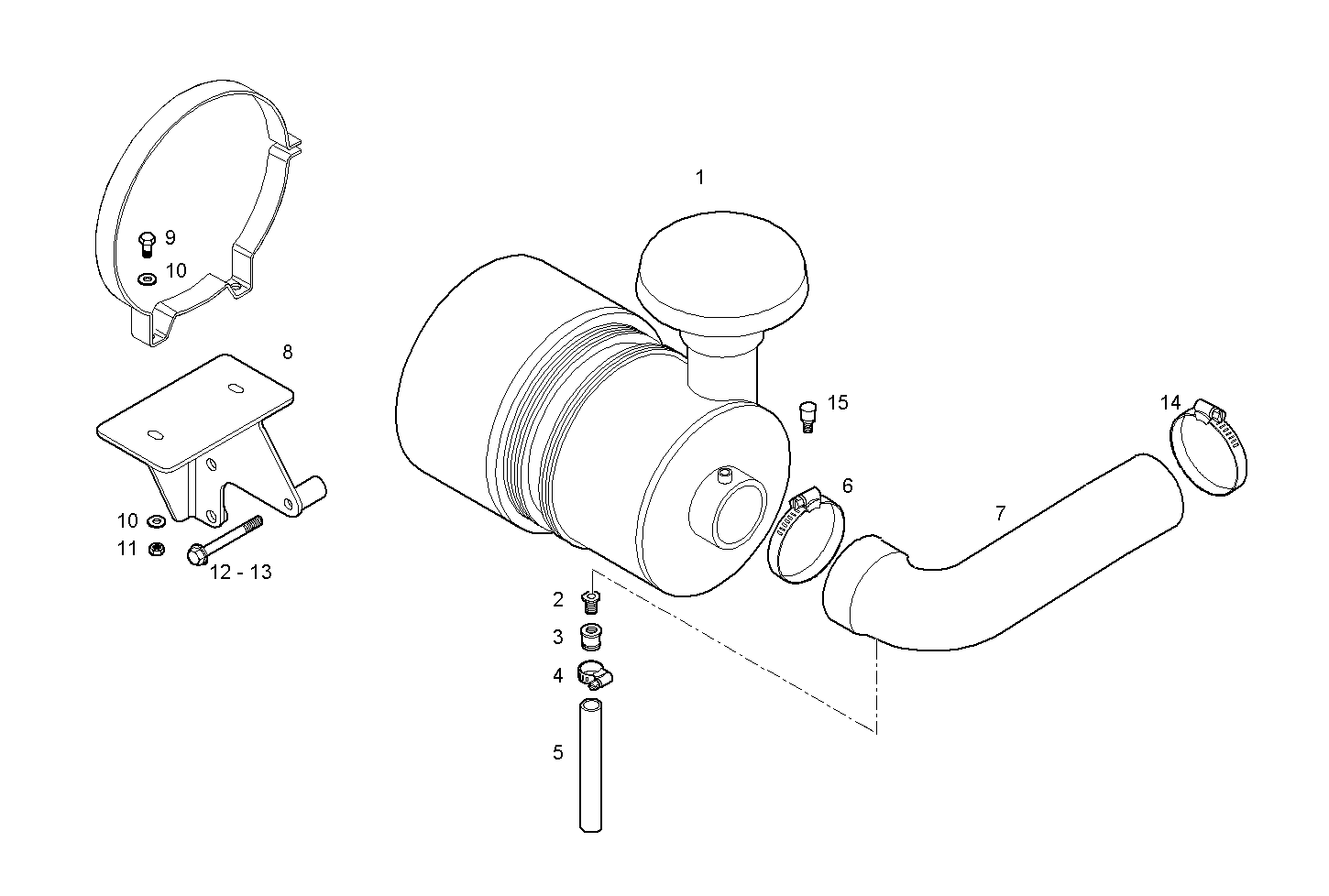

A21210525 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8041319 | AIR CLEANER ASSY |
| 2 | 8015315 | PIPE SOCKET |
| 3 | 8036882 | PIPE SOCKET |
| 4 | 18088392 | CLIP Ø16/25 MM |
| 5 | 8036392 | RUBBER SLEEVE [UP TO 06/10/08] |
| 6 | 17765494 | CLIP dia. = 100/120 |
| 7 | 8041407 | FILTER HOSE |
| 8 | 8041188 | SUPPORT |
| 9 | 16605534 | HEXAGON BOLT M8X20 MM (10.9) |
| 10 | 17089874 | WASHER Ø8X22 MM |
| 11 | 17037925 | HEXAGON NUT M8X1,25 |
| 12 | 16599724 | HEXAGON BOLT M12X130 MM |
| 13 | 16592925 | HEXAGON BOLT M10X80 MM |
| 14 | 17765291 | CLIP Ø80/100 MM |
| 15 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
